51mm stand-up swivel block with stainless steel cheeks
- Sheave Dia. 2" (51 mm)
- Max Line 7/16" (11 mm)
- Dia. includes urethane base 2-7/8" (73 mm)
- Height 4-1/32" (103 mm), H2 2-3/32" (54 mm)
- Fastener Size (4), #10 RH (5 mm), C/C 1-12/31" (36 mm)
- SWL 1750 lbs. (790 kg),
- Weight Stain. 9 oz. (255 g)
- #97-48 backing plated ordered separately
SKU: SC505-62

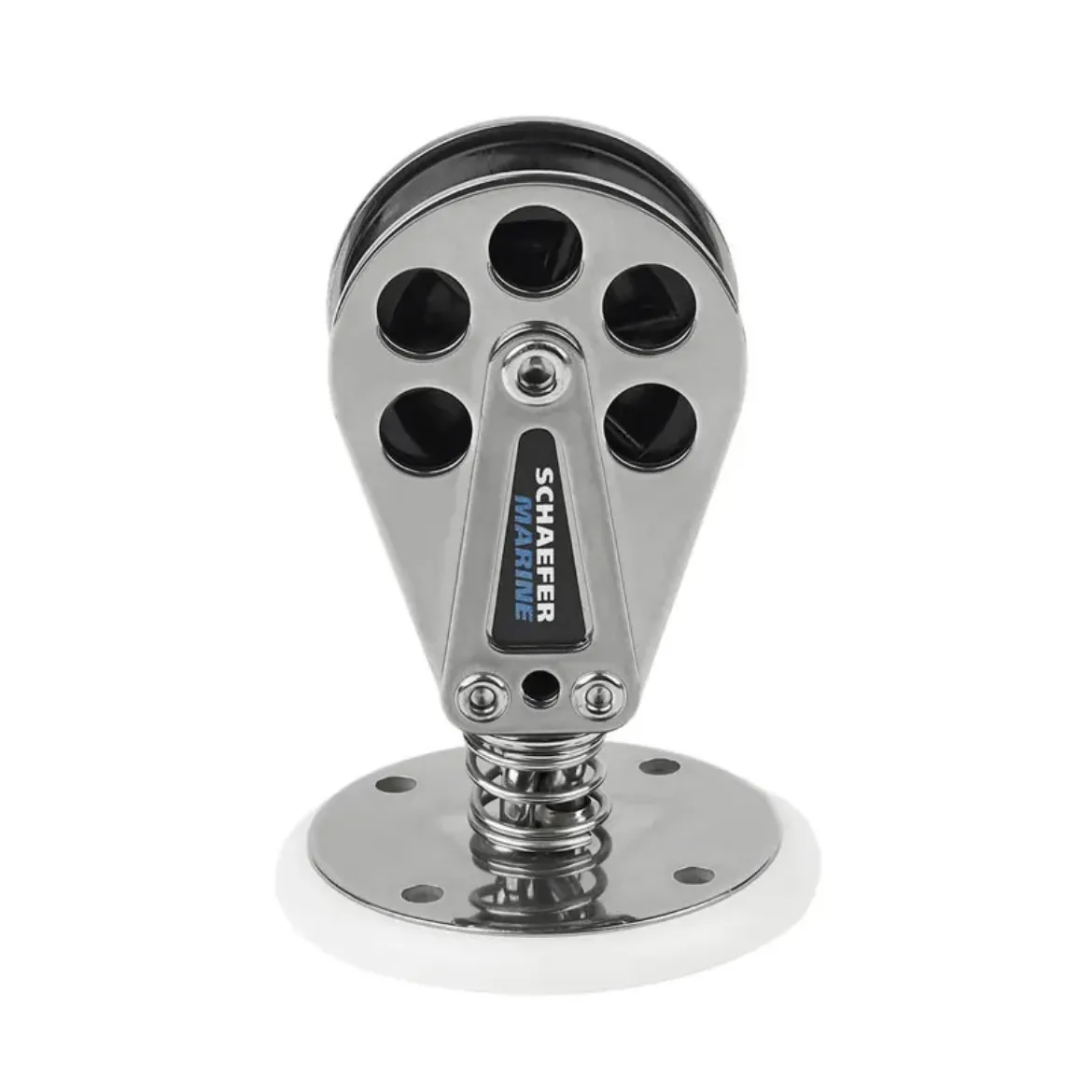

Schaefer Series 5 Stand up swivel block with Stainless Steel cheeks.
Delrin™ sheave ensures smooth operation and high safe working load. Order backing plate separately #97-48.
SKU: SC505-62
- Sheave Dia. 2" (51 mm)
- Max Line 7/16" (11 mm)
- Dia. includes urethane base 2-7/8" (73 mm)
- Height 4-1/32" (103 mm), H2 2-3/32" (54 mm)
- Fastener Size (4), #10 RH (5 mm), C/C 1-12/31" (36 mm)
- SWL 1750 lbs. (790 kg),
- Weight Stain. 9 oz. (255 g)
- #97-48 backing plated ordered separately
SKU | SC505-62 |
Brand | Schaefer Marine |
