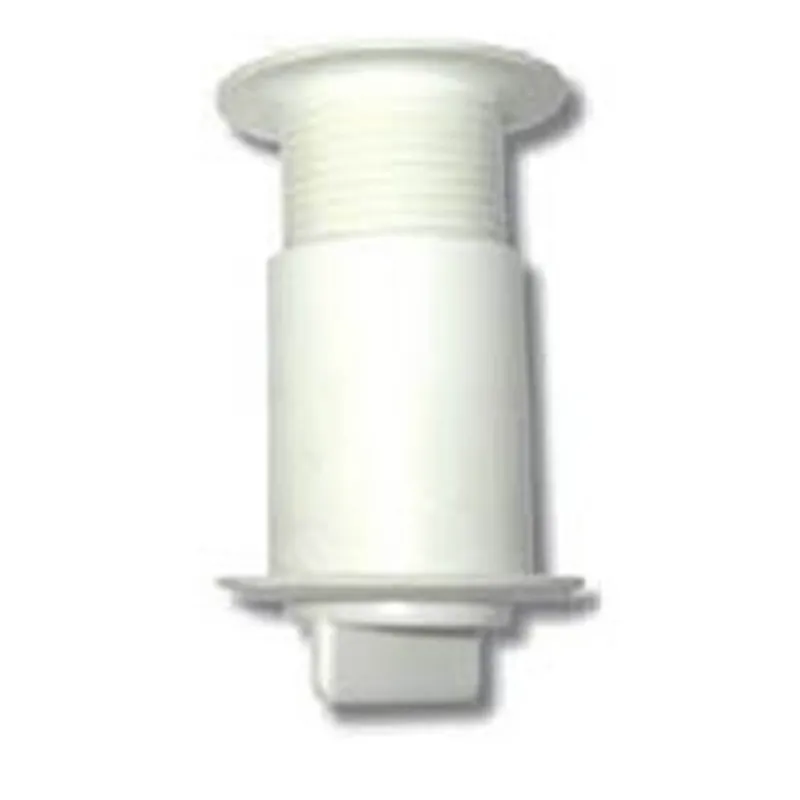

Garboard Drain-Short


  • Useable length with 5 threads engaged is
    • 2-1/2" (63.5mm) maximum
    • 1-7/16" (36.51mm) minimum
  • Diameter of the flange (both ends) is 2" (50.8mm)
  • Diameter of the body (female threaded unit) is 1-3/16" (30.16mm)
  • This is the diameter of the hole needed to install the unit through the transom
  • The screw style plug with gasket comes with it standard.
  • Colour of the Marelon material is white (like all thru hulls)

SKU: FS906075

$64.70
In Stock

Forespar® designed a drain & plug assembly to fit up to 1-3/4" (44.45mm) thick transoms. Forespar's Marelon® female 3/4" (19.05mm) elbows or female threaded barbed hose fittings can be screwed onto the end for hose attachment if needed.  All Marelon® construction ensures years of corrosion free use.

SKU: FS906075

Forespar® accepts no responsibility for valve or thru-hull components which are improperly installed, tampered with or have inadequate access for service and maintenance.

  • Useable length with 5 threads engaged is
    • 2-1/2" (63.5mm) maximum
    • 1-7/16" (36.51mm) minimum
  • Diameter of the flange (both ends) is 2" (50.8mm)
  • Diameter of the body (female threaded unit) is 1-3/16" (30.16mm)
  • This is the diameter of the hole needed to install the unit through the transom
  • The screw style plug with gasket comes with it standard.
  • Colour of the Marelon material is white (like all thru hulls)
SKU FS906075
Brand Forespar
