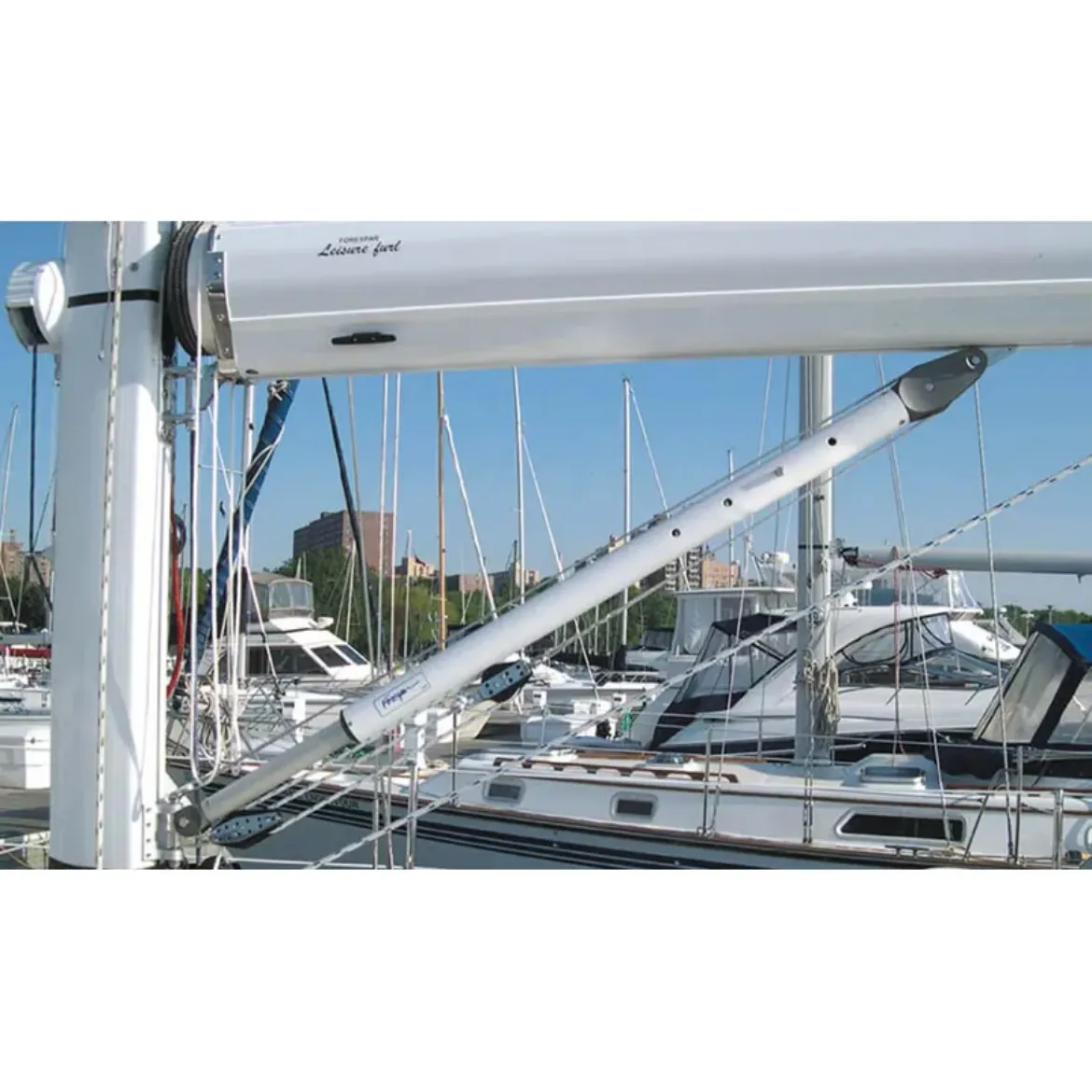

The High Performance Spring-Loaded Mechanical Boom Vang Precision design in three sizes. Medium for boats 34-40'
Excellent vang/boom support for performance cruising and racing. White powder coated aluminum & polished stainless steel. Supplied with spectra cable ready to add your tackle system. Your 4:1 equals 8:1 when installed on Yacht Rod™. Can be led to small winch for additional power. Spring return holds boom. Brackets for mast and boom sold separately.
Caution: Oversheeting or leaning heavily on aft end of boom can bend the boom or the Yacht Rod™. The main halyard shackle should be snapped to the outboard boom end, in port, to prevent damage to the Yacht Rod™.
Note of Caution: Furling booms weigh as much as 3 times as much as standard booms. Standard vang spring will not support their weight. In rough weather and sea conditions, it is prudent to set a topping lift in case of a gooseneck failure or other boom equipment failure.
Forespar® makes three sizes of spring loaded boom vangs for boats starting around 30 feet and up to about 55 feet.
- Eliminates need for boom topping lift
- Supports boom in light air, when reefing and lowering mainsail
- No gas spring to lose its charge
- Faster than hydraulics – No messy hydraulics to leak
- More efficient than conventional tackles
- Tubing is white coated anodized 6061-T6 aluminum and electropolished 316 stainless steel
- Precision machined 6061-T6 aluminum clevis ends, sheaves and Nylatron® bearings
- Precipitation hardened stainless steel spring with fast-pin adjustment — rated for over 1 million compressions.
For more information on the Forespar Yacht Rods visit our Catalogues and Tech Sheets section.
SKU: FS352000
• Eliminates the need for the topping lift to be set in general sailing conditions*
• Supports boom in light air and when reefing and lowering the mainsail
• Faster than hydraulics – No messy hydraulics to leak
• More efficient than conventional tackles
• Tubing is white coated anodized 6061-T6 aluminium and electro polished 316 stainless steel
• Precision machined 6061-T6 aluminium clevis ends, sheaves and Nylatron® bearings
• Precipitation hardened stainless steel spring with fast-pin adjustment – rated for over 1 million compressions
• No gas spring to lose its charge
- Stroke: 7”
- Adjustable Length:
- Pin to Pin (min): 58 1/2"
- Pin to Pin (Max): 70 1/2"
- Adjustable distance: 12"
- Pin size: 1/2"
- Jaw width: 3/8"
- Weight: 9.8 lbs
- Max return force: 600 lbs
SKU | FS352000 |
Brand | Forespar |
