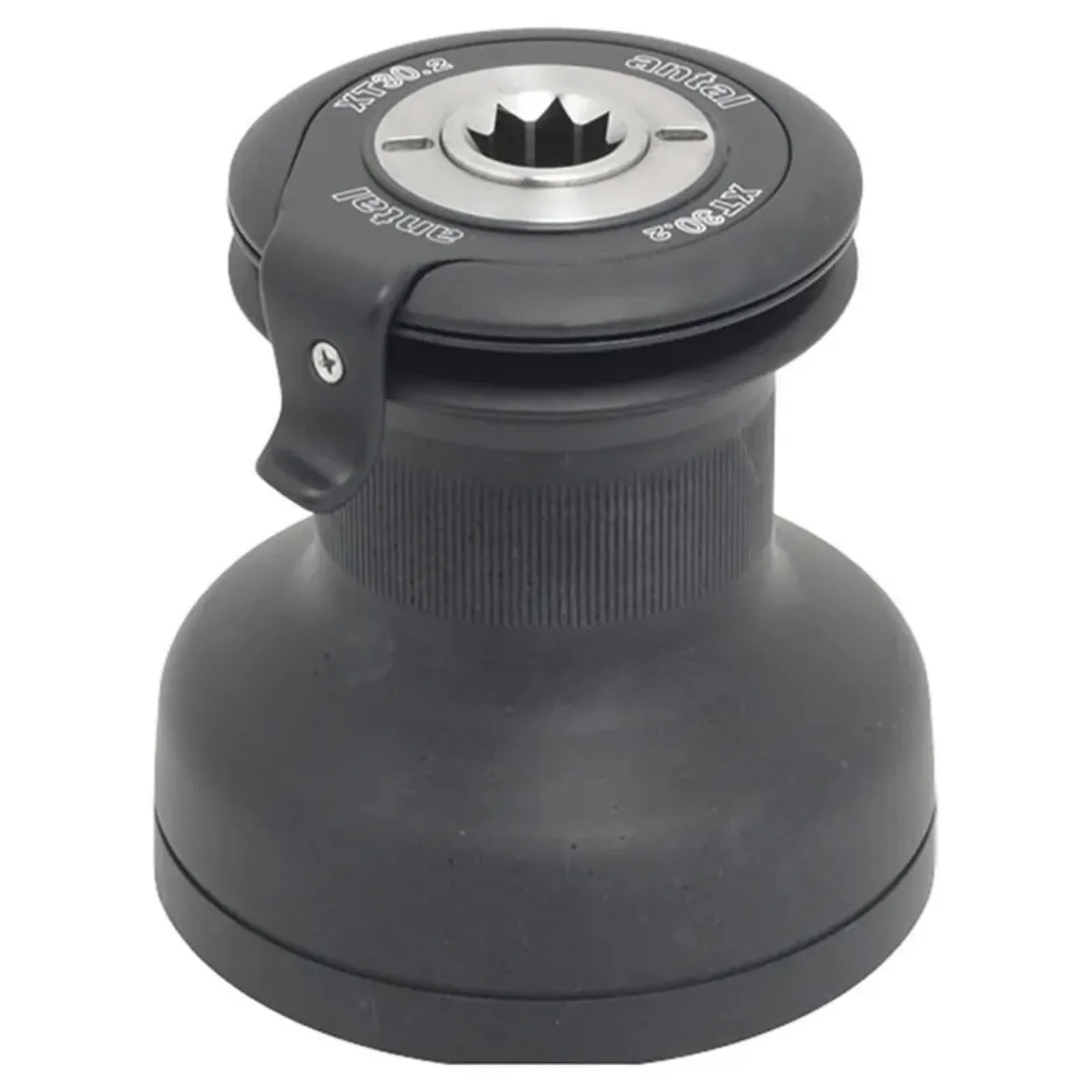

Size 30 Black aluminium drum two speed self-tailing winch


  • Height:   135mm
  • ø base (D):  128mm
  • ø drum (d): 73mm
  • Weight: 2.9kg
  • Power 1:  7
  • Power 2:  28
  • Recovery (manual use) 1:  229mm
  • Recovery (manual use) 2:  58mm
  • ø Min line:  6mm
  • ø Max line: 10mm
  • Fixing screws:  5 x 6mm
  • Gear ratio 1:   1:1
  • Gear ratio 2:  4.1:1

SKU: AT-XT30.2AL

$1,592.00
In Stock

Finish

Size 30 Black aluminium drum two speed self-tailing winch.

14 new self-tailing winches available in the following versions: Hard black aluminium (AL): the aluminium drum is hard black anodized and teflon coated, scratch-proof and very hard-wearing. Chrome (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome.

Simple opening: just unscrew the upper ring to immediately dismantle the winch for an easy of cleaning and maintenance. New self-tailing XT system: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm. Knurling: the drum vertical knurling offers maximum horizontal friction allowing the rope “slide” upwards. Differentiated grip (aluminium drums only): minimum friction on the lower part where loads are higher and maximum at the top where loads are minimal: the result is an even grip along the entire drum. CNC base: machined by CNC (computer numeric control machines) is lighter and stronger than normal castings; aluminium made, hard black anodized and teflon coated. Easy removal from the winch makes maintenance a simple affair.





SKU: AT-XT30.2

  • Height:   135mm
  • ø base (D):  128mm
  • ø drum (d): 73mm
  • Weight: 2.9kg
  • Power 1:  7
  • Power 2:  28
  • Recovery (manual use) 1:  229mm
  • Recovery (manual use) 2:  58mm
  • ø Min line:  6mm
  • ø Max line: 10mm
  • Fixing screws:  5 x 6mm
  • Gear ratio 1:   1:1
  • Gear ratio 2:  4.1:1
SKU AT-XT30.2
Brand Antal
