13mm Pad-Tii with 10-12mm depth Black


  • Distance between flats:  18mm
  • Outside diameter:  19
  • Fixing hole diameter:  12.80mm
  • Fixing hole depth minimum:  10mm
  • Fixing hole depth maximum:  12mm
  • Breaking load:  350kg
  • Safe working load:  250kg
  • Weight:

SKU: A8639-10-BLACK

$36.35
In Stock

Colour

Allen's range of aluminium through deck bush and threaded through deck bushes have been well received by the industry so we have decided to continue with the development.

The logical product progression being fixing tie on blocks to the deck or bulkhead. There are a number of companies producing products that provide this, so we decided to think a little more laterally and have come up with a range of Pad-Tii that have some additional design features.

A number of current products require the integral pad and associated tie on rope to be permanently bonded to a surface, which doesn’t readily allow replacement of worn rope.

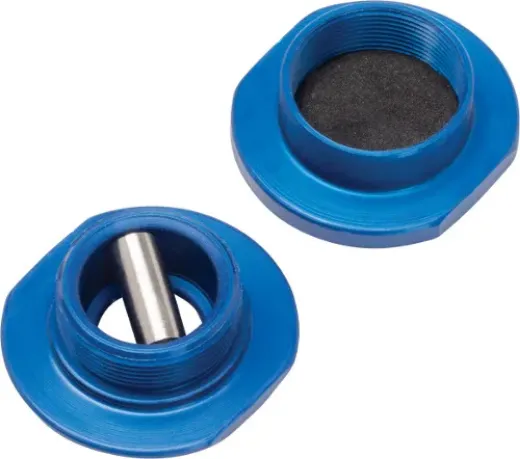

With the Pad-Tii Allen have incorporated an ingenious removable attachment pin to allow the user to replace the tii on rope as it wears. Simply unscrew the upper insert, push down on the tii on rope and remove the stainless steel crossbar. Install your replacement tii on rope by pushing through the hole in the centre of the upper insert, slide the pin into place retaining the tii on rope and screw the upper insert back into the deck.

The lower insert is enclosed ensuring the design is watertight and the two parts have flats so they can be tightened and undone with simple tools.

Colours available - Blue and Black

* Other colours are available upon request but will result in a longer lead time.

(A8639-10)

  • Distance between flats:  18mm
  • Outside diameter:  19mm
  • Fixing hole diameter:  12.80mm
  • Fixing hole depth minimum:  10mm
  • Fixing hole depth maximum:  12mm
  • Breaking load:  350kg
  • Safe working load:  250kg
  • Weight:
SKU A8639-10
Brand Allen Brothers
