Hydraulic Boom Vang
Vang cylinders are equipped with a pressure rod release. Inert gas pressure is charged through a “pneumatic” valve located on the cylinder body, near to the boom-side vang terminal.
Gas pressure is to be adjusted depending both on the release speed you wish, and on the thrust needed to contrast the weight of the boom.
Pressure has to be charged indicatively at 500 psi (35 bar).
The system is equipped with a mechanical valve to exclude the gas-loading pin and grant pressure holds in time.
All VANG cylinders may also be customized with double acting function (push&pull) and position sensor.
Polished stainless steel bodies are available upon demand
Instruction manual hydraulic boom Vang

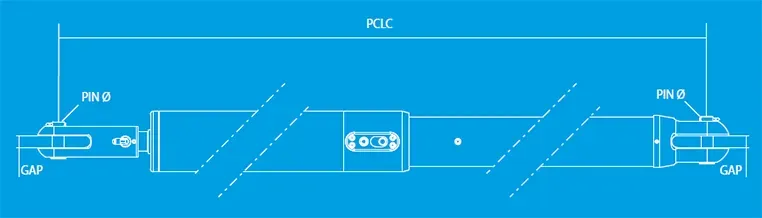

| Model # | External Ø mm | Cylinder rod Ø mm | Pin Ø mm | GAP mm | Stroke mm | Cylinder max pull (1) (3) kg | Gas push (2) kg | Length max PCLC mm | Max axial compression load (Buckling) kg | Indicative weight kg |
|---|---|---|---|---|---|---|---|---|---|---|
| -17 | 65 | 25 | 16 | 16 | 300 | 3100 | 550 | 2000 | 1000 | 15 |
| -22 | 75 | 30 | 16 | 16 | 350 | 4715 | 830 | 2300 | 1500 | 20 |
| -30 | 90 | 30 | 19 | 19 | 350 | 9200 | 1300 | 2500 | 2000 | 30 |
| -40 | 110 | 35 | 22 | 22 | 400 | 11810 | 1740 | 2700 | 2600 | 40 |
| -60 | 120 | 40 | 25 | 25 | 450 | 14780 | 2200 | 3000 | 3700 | 60 |
| -90 | 140 | 50 | 32 | 32 | 500 | 16760 | 2700 | 3250 | 5000 | 75 |
| -110 | 155 | 50 | 35 | 35 | 500 | 24340 | 3600 | 3500 | 6000 | 100 |
| -150 | 180 | 60 | 40 | 40 | 500 | 30320 | 4600 | 4100 | 9000 | 125 |
| -195 | 220 | 70 | 50 | 50 | 500 | 47845 | 9900 | 4700 | 12000 | 170 |
