Vang cylinders are equipped with a pressure rod release. Inert gas pressure is charged through a “pneumatic” valve located on the cylinder body, near to the boom-side vang terminal.
Gas pressure is to be adjusted depending both on the release speed you wish, and on the thrust needed to contrast the weight of the boom.
Pressure has to be charged indicatively at 500 psi (35 bar).
The system is equipped with a mechanical valve to exclude the gas-loading pin and grant pressure holds in time.
All VANG cylinders may also be customized with double acting function (push&pull) and position sensor.
Polished stainless steel bodies are available upon demand

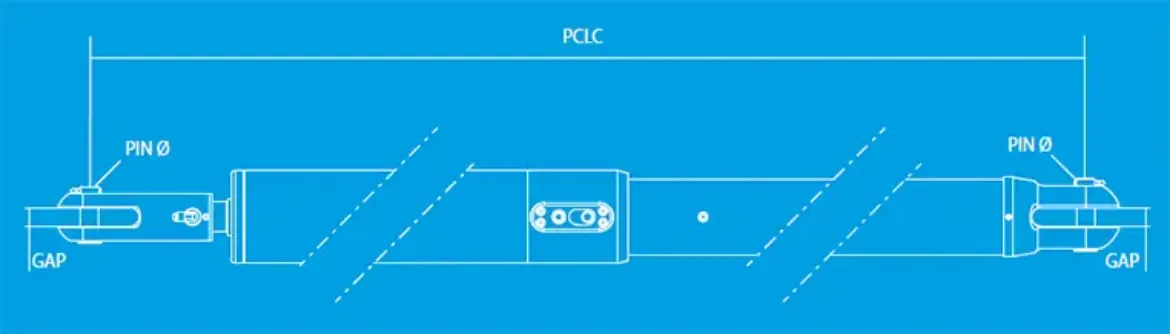

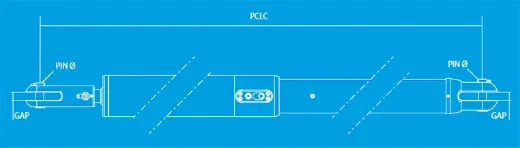

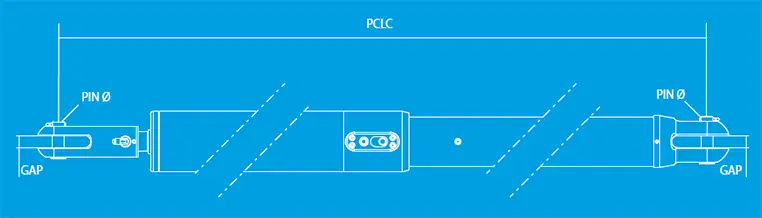

Model #
External Ø mm
Cylinder rod Ø mm
Pin Ø mm
GAP mm
Stroke mm
Cylinder max pull (1) (3) kg
Gas push (2) kg
Length max PCLC mm
Max axial compression load (Buckling) kg
Indicative weight kg
-17
65
25
16
300
3100
550
2000
1000
15
-22
75
30
350
4715
830
2300
1500
20
-30
90
19
9200
1300
2500
-40
110
35
22
400
11810
1740
2700
2600
40
-60
120
450
14780
2200
3000
3700
60
-90
140
50
32
500
16760
3250
5000
-110
155
24340
3600
3500
6000
100
-150
180
30320
4600
4100
9000
125
-195
220
70
47845
9900
4700
12000
170
