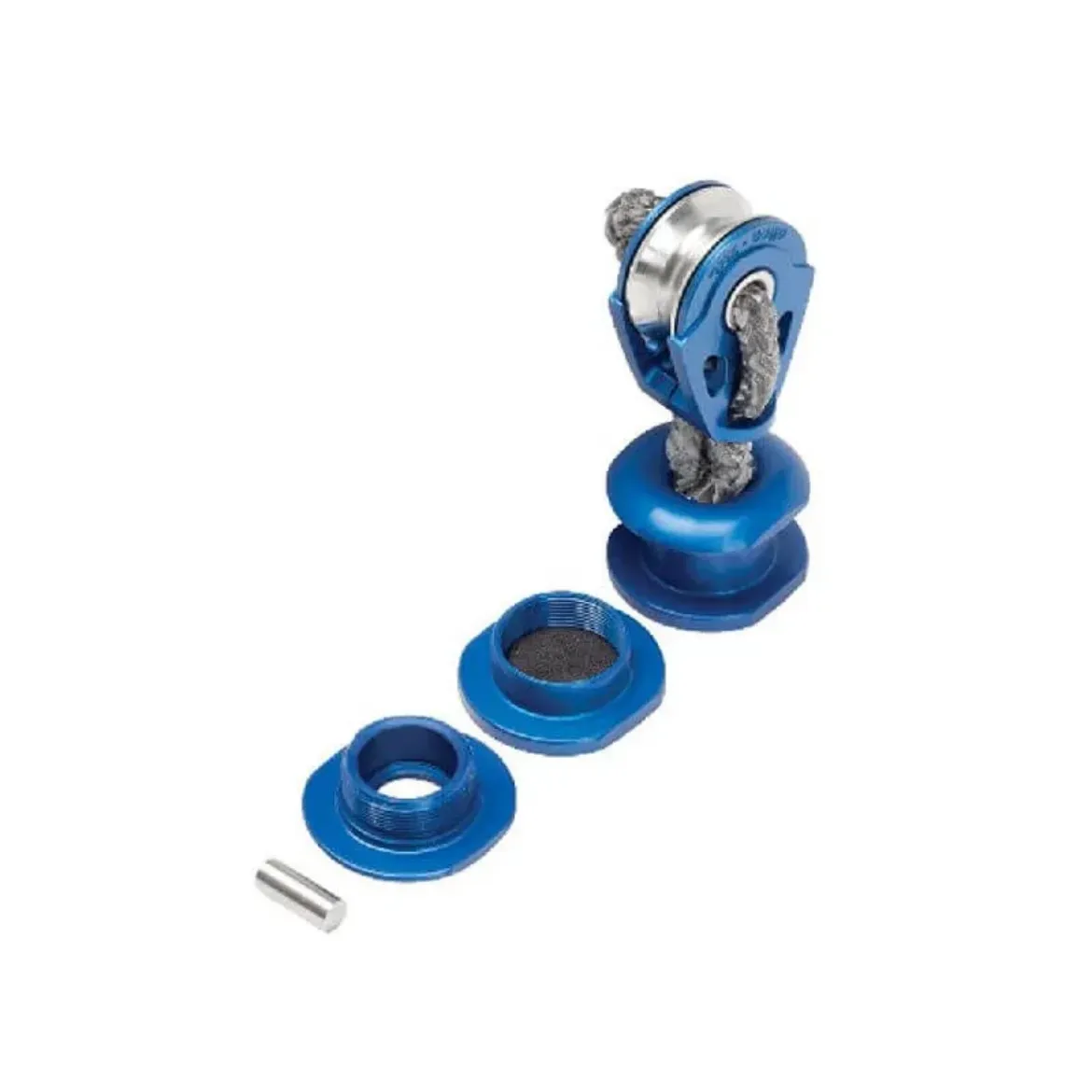

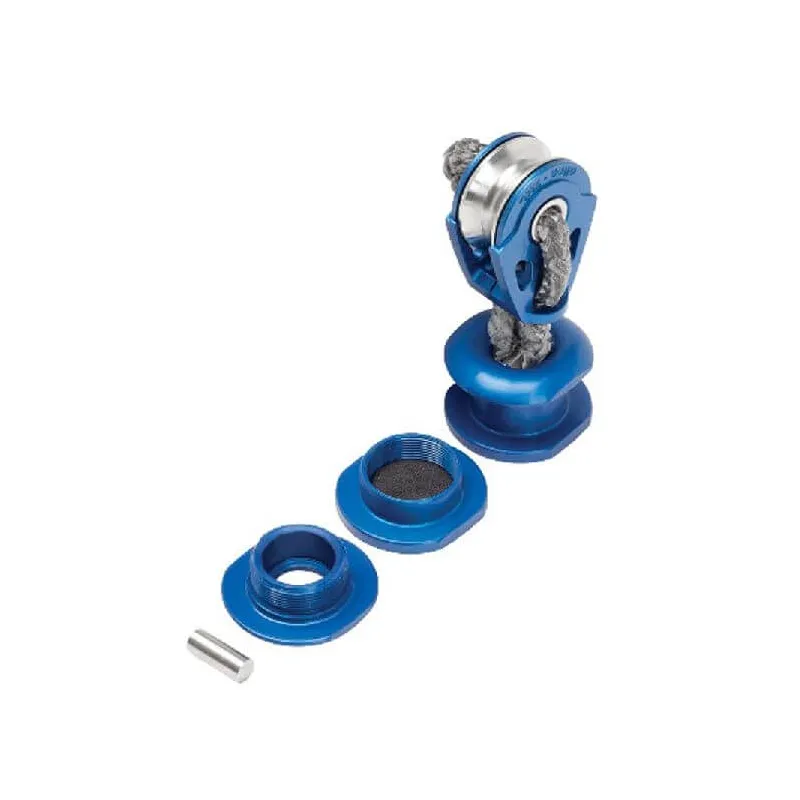

With the Pad-Tii Allen have incorporated an ingenious removable attachment pin to allow the user to replace the tii on rope as it wears. Simply unscrew the upper insert, push down on the tii on rope and remove the stainless steel crossbar. Install your replacement tii on rope by pushing through the hole in the centre of the upper insert, slide the pin into place retaining the tii on rope and screw the upper insert back into the deck.
The lower insert is enclosed ensuring the design is watertight and the two parts have flats so they can be tightened and undone with simple tools.
Colours available - Blue and Black. Block not included
* Other colours are available upon request but will result in a longer lead time.
SKU: A8639-6
OD: 19mm
Fixing hole centres: 13mm
Fixing hole diameter: 12.80mm
Fixing hole depth min: 6mm
Fixing hole depth max: 8mm
Breaking load: 350kg
Max working load: 250kg
Weight: 21g
SKU | A8639-6 |
Brand | Allen Brothers |
