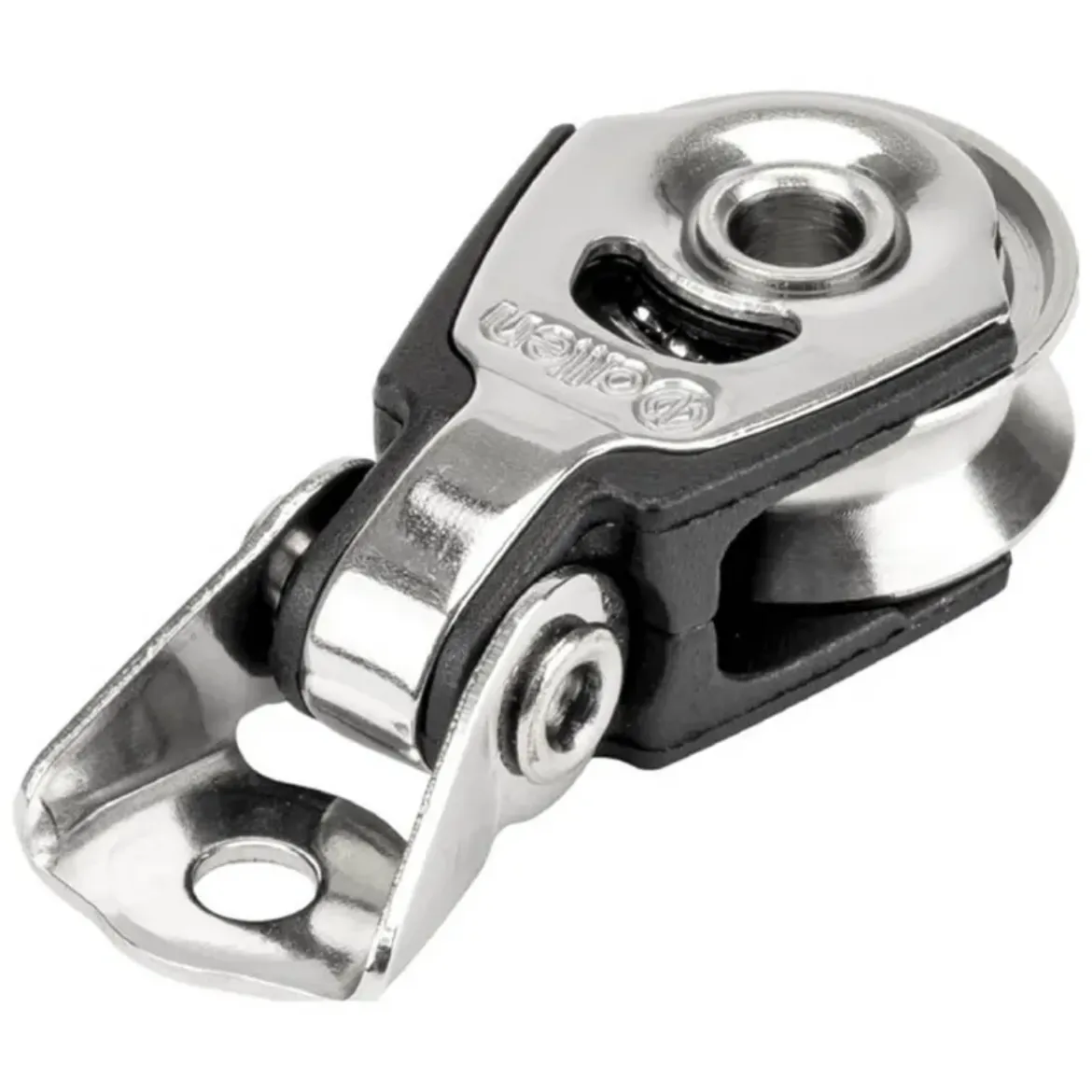

20mm Single High load Dynamic Bearing Cheek Block


Length: 45mm

Max Line Diameter: 6mm

Breaking Load: 350kg

Max Working Load: 350kg

Weight: 21.3g

Hole Centres: 30mm

SKU: A2026HL

$70.25
In Stock

Single cheek block with high load sheave.

This block is mounted to our Profix cheek adapter which allows from articulation, so the block can lift up and down to align correctly with the rope. High Load Blocks fit between the standard dynamic range and the XHL range. The blocks feature a stainless-steel sheave which runs on a double race of stainless-steel ball bearings. By utilising a stainless-steel sheave with a slight V shape profile, the Allen High Load range offers the ability to be paired with both wire and Dyneema®. This design also reduces the deformation of the sheave under high static loads. These combinations result in less friction, higher working loads, better performance and durability over the acetal sheave Dynamic Block range.

SKU: A2026HL

Length: 45mm

Max Line Diameter: 6mm

Breaking Load: 350kg

Max Working Load: 350kg

Weight: 21.3g

Hole Centres: 30mm

SKU A2026HL
Brand Allen Brothers
