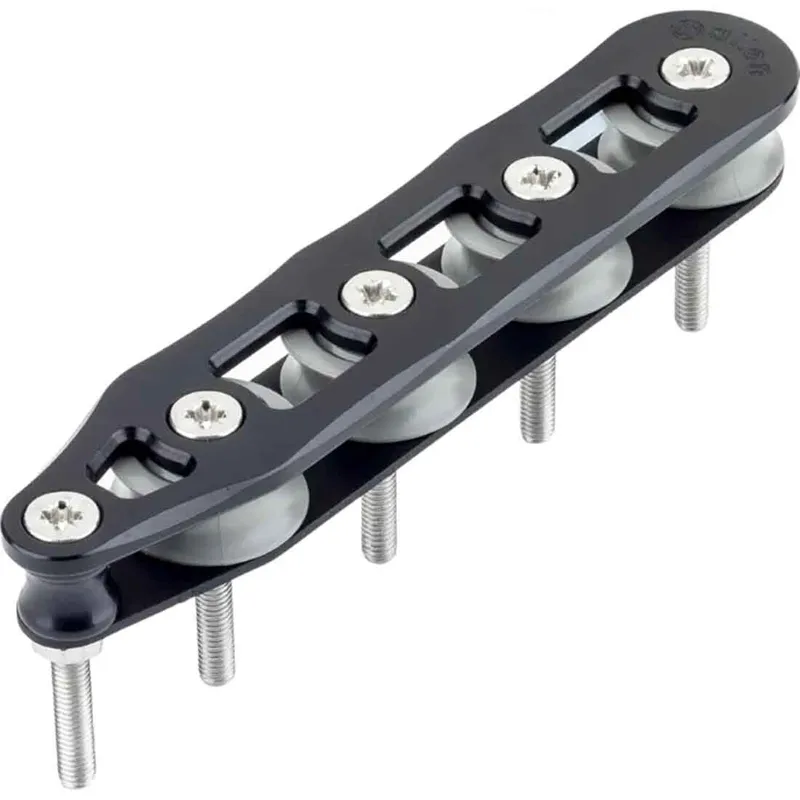

PB 20mm Deck Organiser with Plain Bearing

Designed for leading control lines and halyards along a deck or coach roof. The cheeks are made from marine grade aluminium and anodised black. Includes four bolts, nuts and washers. The non-sheave column can be used as a becket.

Easily stacked to create double height deck organiser. When stacked the upper organiser is rated to two-thirds of the max working and breaking load.

PB stands for Plain Bearing. The plain bearing sheaves offer good static loading capabilities at a low weight and cost. The ideal choice for systems that are not fast running or need constant adjustment. Made using recycled materials and features a grey sheave to differentiate it from the dynamic sheave version.

We have rated the PB deck organiser range based on a 30-degree turning angle around the sheave. A 30-degree turn on a sheave will have a load factor of 50% of the line load.
