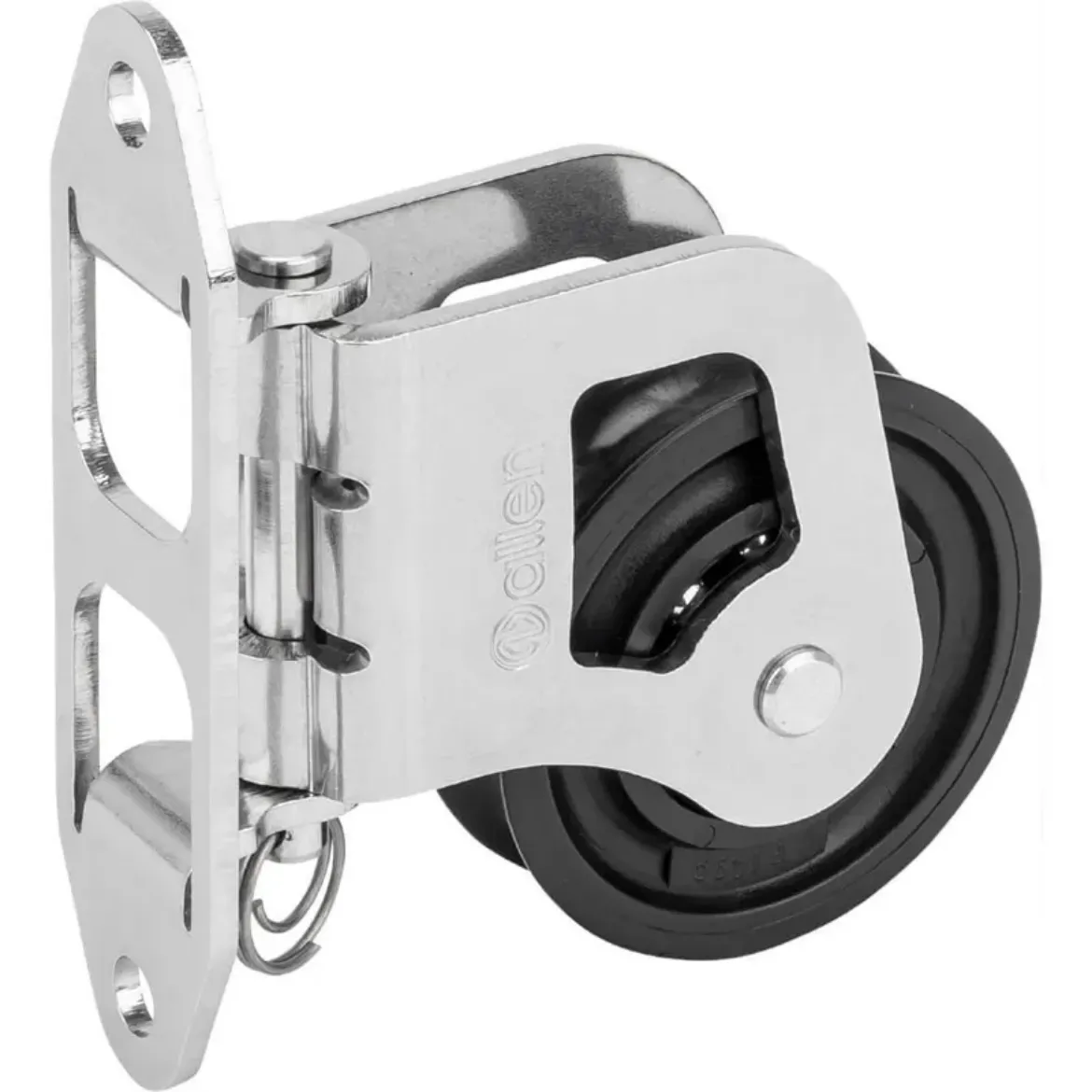

40mm Flip Flop Block


Fixing hole centres: 60mm

Fixing hole diameter: 5mm

Max line diameter: 10mm

Max working load: 150kg

Sheave diameter: 40mm

Weight: 77g

SKU: A2143

$103.85
In Stock

Flip flop blocks are designed to pivot around a central fixing point, this keeps the rope close to the deck, mast or boom whilst still allowing the block to articulate to the correct lead angle, ensuring friction stays as low as possible whilst still guiding the rope to where it needs to go.

Features a laser-cut stainless-steel body and backing plate, guaranteeing each one is finished to the exact same measurements and quality finish. This precision manufacturing style allows for maximum strength in the smallest form possible.

The sheave features our dynamic ball bearing technology. Which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.

A clevis pin holds the main flip flop body to the backing plate. This clevis pin is the central flip flop /pivot point for the block. Removing the clevis pin will part the body and backing plate, allowing for easy access to the backing plate as well as giving the option to install the body either way up.

The backing plate has fixing hole centres of 60.3mm. This makes the range easily interchangeable with existing products on the market.

Ideal for halyards, spinnaker sheet turning points, sheet leading and backstays.

SKU: A2143

Fixing hole centres: 60mm

Fixing hole diameter: 5mm

Max line diameter: 10mm

Max working load: 150kg

Sheave diameter: 40mm

Weight: 77g

SKU A2143
Brand Allen Brothers
