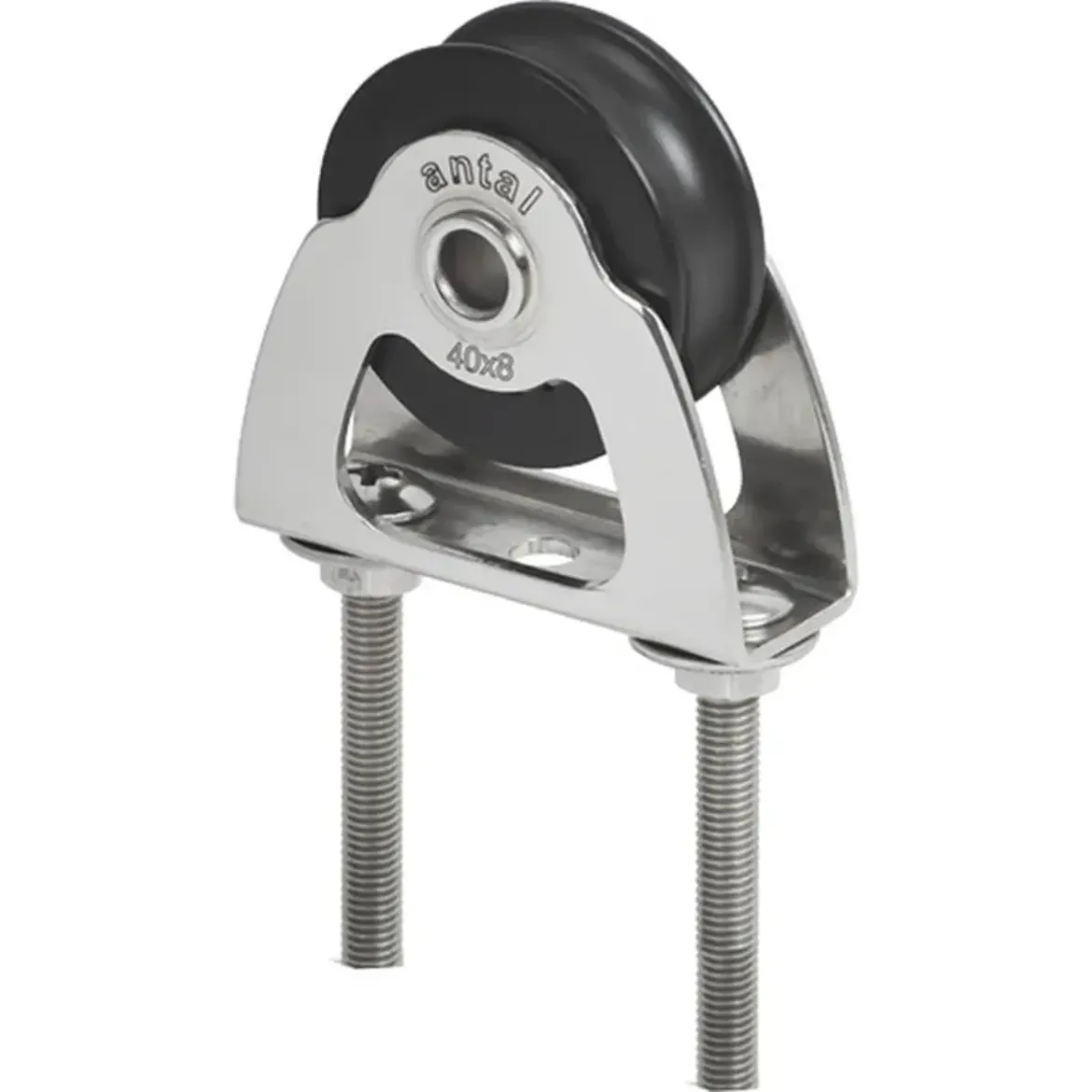

40mm stainless steel upright block
- Length: 63mm
- Width: 18mm
- Height: 55mm
- Sheave D: 40mm
- Side bearing: Delrin bearing
- Weight: 77gr
- Max line: 8mm
- SWL: 600kg
- Material: Stainless steel
- Sheave material: plastic
- Fixing screws: 2 x 6mm round head
SKU: AT-00423
$92.70
In Stock
This series offers extremely high working loads (SWL: 34x6 = 400 kg, 40x8 = 500 kg) while still compact and lightweight.
The sheave is made of resin with a double lateral ball-bearing. Cheekplates are made of perfectly polished AISI 316 stainless steel. The high quality materials guarantee a maintenance-free product. Resin sheave with double self-captive ball bearings.
SKU: AT-00423
- Length: 63mm
- Width: 18mm
- Height: 55mm
- Sheave D: 40mm
- Side bearing: Delrin bearing
- Weight: 77gr
- Max line: 8mm
- SWL: 600kg
- Material: Stainless steel
- Sheave material: plastic
- Fixing screws: 2 x 6mm round head
| SKU | AT-00423 |
| Brand | Antal |
