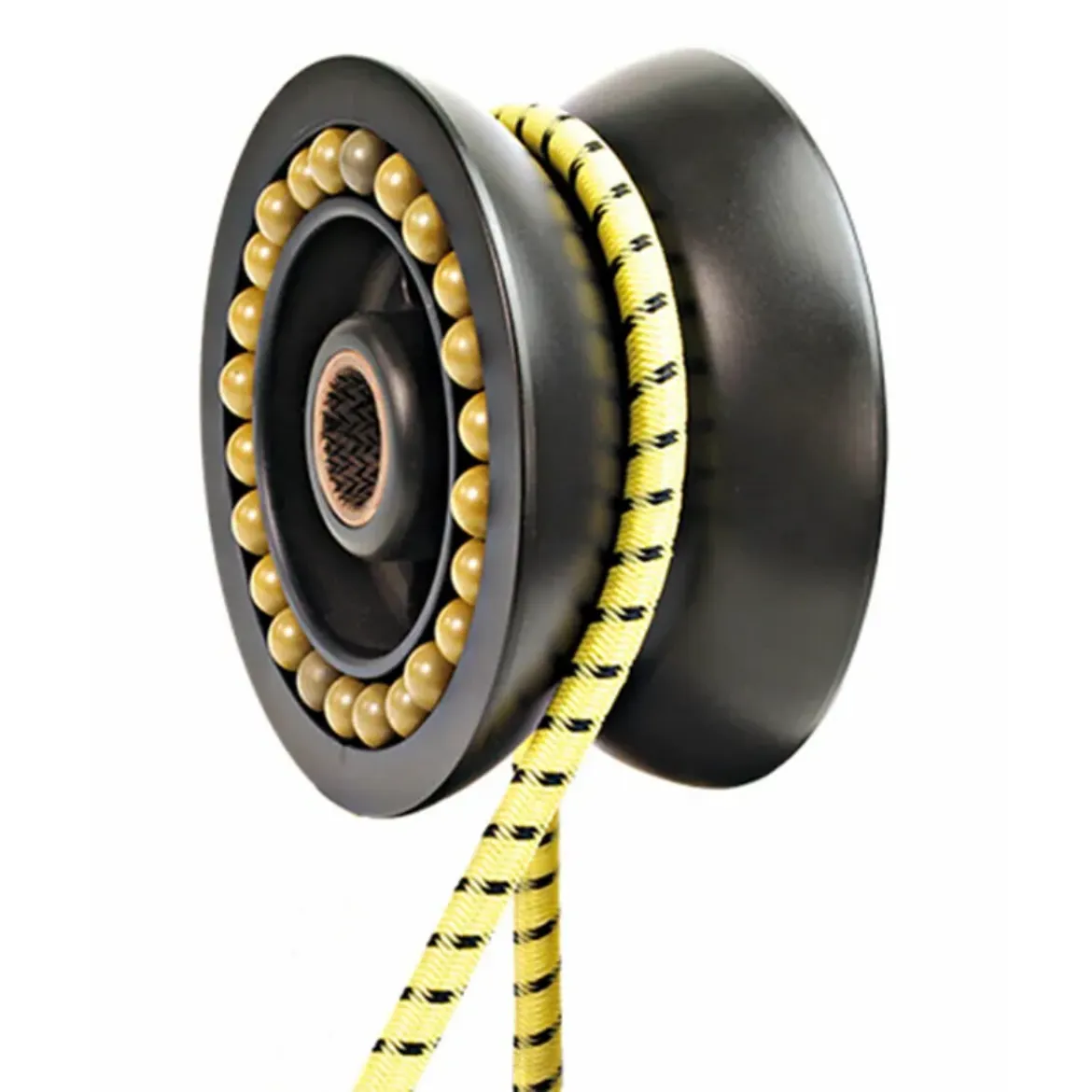

The Tulip sheaves are fixed sheaves that do not turn in the direction of manoeuvres since they accept quite different lead angles. The choice of a Tulip sheave instead of a revolving block comes from the need to reduce bulk and weight. The sheave, with an axial bearing in composite fibre and large round bearings (self-captive) in Torlon for side loads, is in anodized and Teflon coated aluminium and can handle very high loads.
SKU: AT-801.045
- Batten dimensions: 12mm
- Sheave (D): 45mm
- Side bearing: Delrin balls
- Radial bearing: composite fibre
- Weight: 40gr
- Max line: 12mm
- SWL: 1000kg
- Sheave material: Plastic
- D2: 12mm
- Thickness (T): 31mm
SKU | AT-801.045 |
Brand | Antal |
