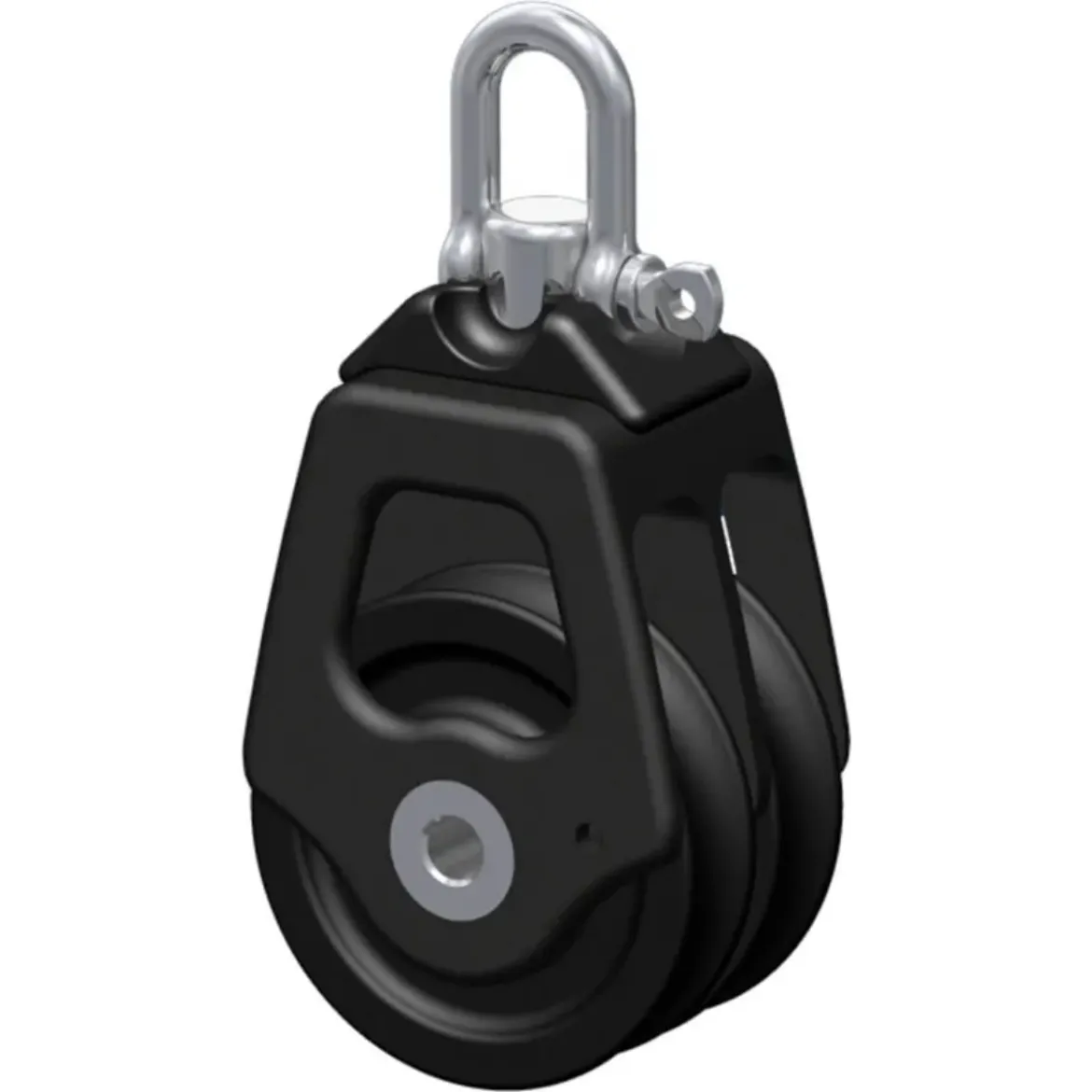

50mm OPF series double block


  • Sheave diameter:   50mm
  • Side bearing:  Delrin balls
  • Radial bearing:  composite fibre
  • Weight:  169gr
  • Max line:   10mm
  • SWL:   800kg
  • Material:  Aluminium
  • Sheave material:  Plastic
  • Shackle model:  006SS

SKU: AT-00503

$229.15
In Stock

The “One Piece Frame” block by Antal, without pins or screws, it is a light and strong solution: simply a hard black anodized and teflon coated aluminium frame in one piece.

A complete range from 50 to 140 mm sheaves in single, double, triple, fiddle, and deck versions, for webbing or shackle connection. Sizes are based on the range of HR shackles available and on their safe working load (SWL). The HR swivel head. Made in high resistance stainless steel, with three positions: swivelling head, longitudinal lock and transversal lock. HR shackles included. The one-piece-frame. The one-piece aluminium extruded body is the strongest and lightest solution, no assembling pin rivets or screws and nuts. CNC machined - polished - hard black anodized and teflon coated. The composite fibre sheave. The resin (aluminium on larger mod) sheave runs on the main Composite Fibre bearing and on a ground stainless steel hub: low friction highloads - no lubricant required. The self-captive side ball bearing reduces the friction and makes disassembling, cleaning and maintenance very easy. Sheaves are supplied with the s.steel hub, they are available separately.

SKU: AT-00503

  • Sheave diameter:   50mm
  • Side bearing:  Delrin balls
  • Radial bearing:  composite fibre
  • Weight:  169gr
  • Max line:   10mm
  • SWL:   800kg
  • Material:  Aluminium
  • Sheave material:  Plastic
  • Shackle model:  006SS
SKU AT-00503
Brand Antal
