60mm composite fibre bearing, resin sheave
- Sheave (D): 60mm
- Side bearing: Delrin balls
- Radial bearing: composite fibre
- Weight: 46gr
- Max line: 12mm
- SWL: 800kg
- Sheave material: plastic
- D2: 15mm
- D3: 12mm
- Thickness (T): 16mm
SKU: AT-06016F
$76.45
In Stock

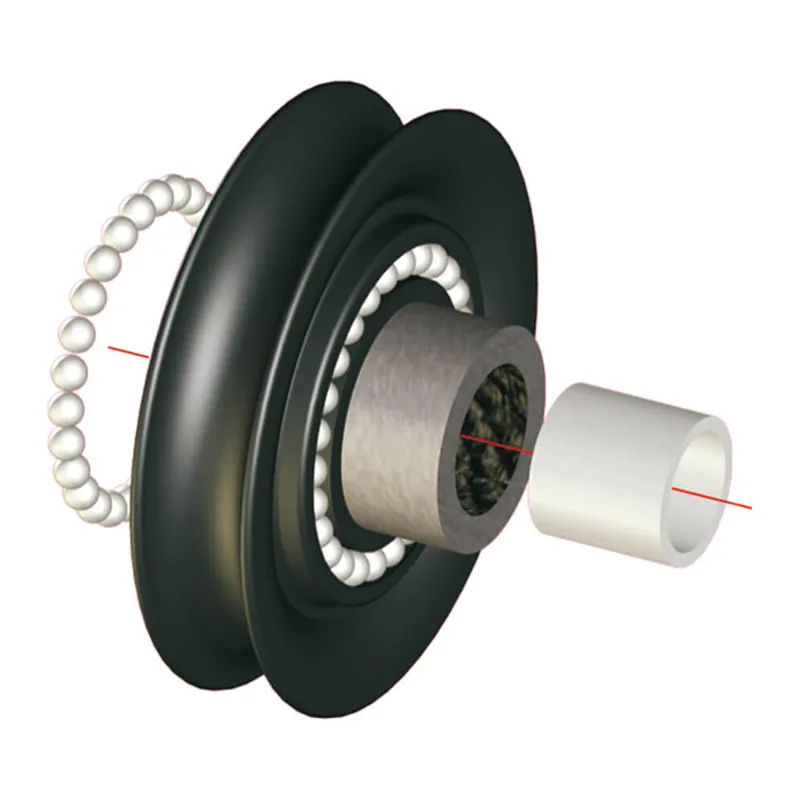

The resin (aluminium on larger models) sheave runs on the main Composite Fibre bearing and on a ground Stainless Steel Hub: low friction high loads - no lubricant required.
The self-captive side ball bearing reduces the friction and makes disassembling, cleaning and maintenance very easy.
Sheaves are supplied with the stainless steel hub, they are available separately.
SKU: AT-06016F
- Sheave (D): 60mm
- Side bearing: Delrin balls
- Radial bearing: composite fibre
- Weight: 46gr
- Max line: 12mm
- SWL: 800kg
- Sheave material: plastic
- D2: 15mm
- D3: 12mm
- Thickness (T): 16mm
| SKU | AT-06016F |
| Brand | Antal |
