Allen Brothers (fittings) Ltd are proud to introduce their new 10:1 60mm mainsheet purchase system. It has been developed due to ever increasing performance of today’s catamarans.

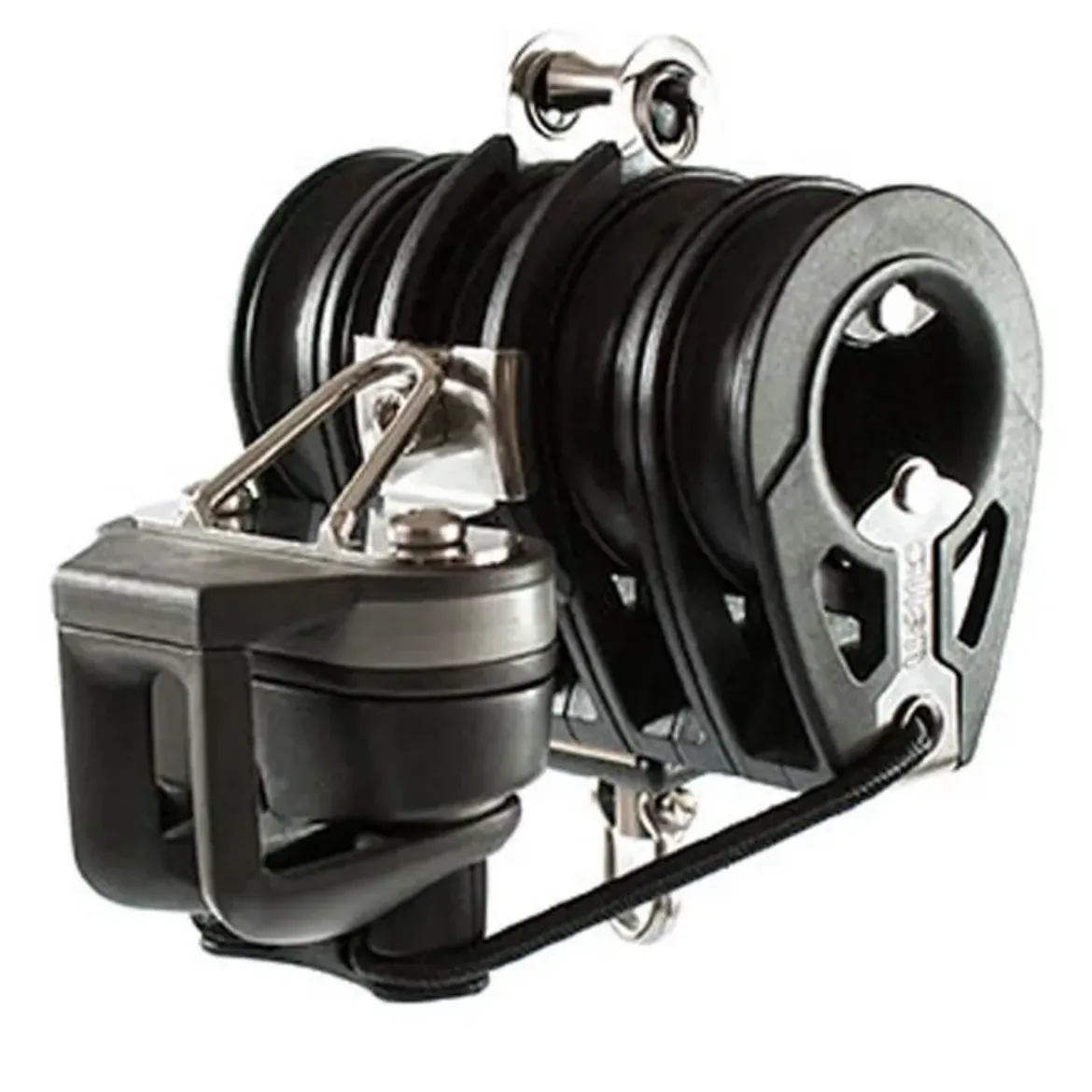

The A2069 (533g) top block is made from 5, 60mm dynamic bearing blocks and the A2169 (748g) bottom block of 4, 60mm dynamic bearing blocks with the centre and fifth block being a 60mm switchable ratchet. The sheet then passes to a 38mm cam cleat. The Quint is designed to work on a wide range of fast cats from Tornados, F18’s through to the latest foilers. This system runs with stainless steel balls on stainless races and is engineered to deliver the smoothness and feel over long periods of hard use.
SKU: A2169
Sheave diameter: 60mm
Length: 148mm
Max Line Diameter: 12mm
Shackle Pin: 6mm
Max Breaking load: 600kg
Breaking Load: 1250kg
Weight: 749g
SKU | A2169 |
Brand | Allen Brothers |
