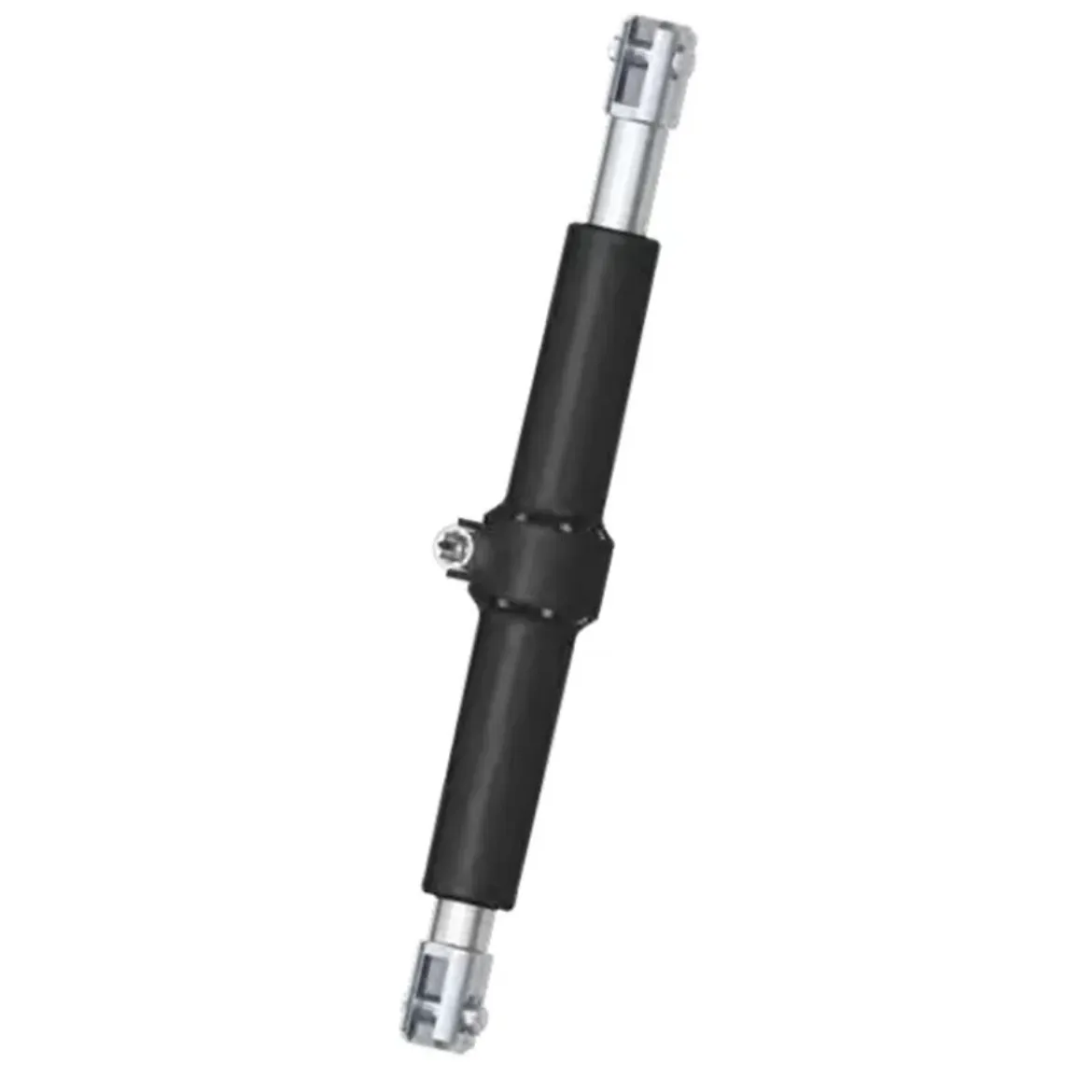

BTM F10 Handle Stay Adjuster suits a Rod Dash size: 17, Pin Ø: 16mm and Wire 1 x 19: 10mm.
BTM winch handle stay tensioners are available in several sizes.
They are made for either 1×19 wire stays from Ø 8 to 22 mm or rod equivalent.
The mechanism can be operated by means of a standard winch handle thanks to an octagonal clutch.
BTM stay tensioners body is manufactured in black HARDCOTE anodized aluminium; whereas studs and forks are made in Stainless Steel.
Double extension studs allow for a longer stroke compared to comparable products.
SKU: BA-103111100000
Rod Dash size: 17
Pin Ø: 16mm
Wire 1 x 19: 10mm
Working load max: 5000kg
Breaking load: 10000kg
A: 89mm
B Max: 898mm
B Min: 598mm
C: 27mm
D: 16mm
Stroke: 300mm
SKU | BA-103111100000 |
Brand | Bamar |
