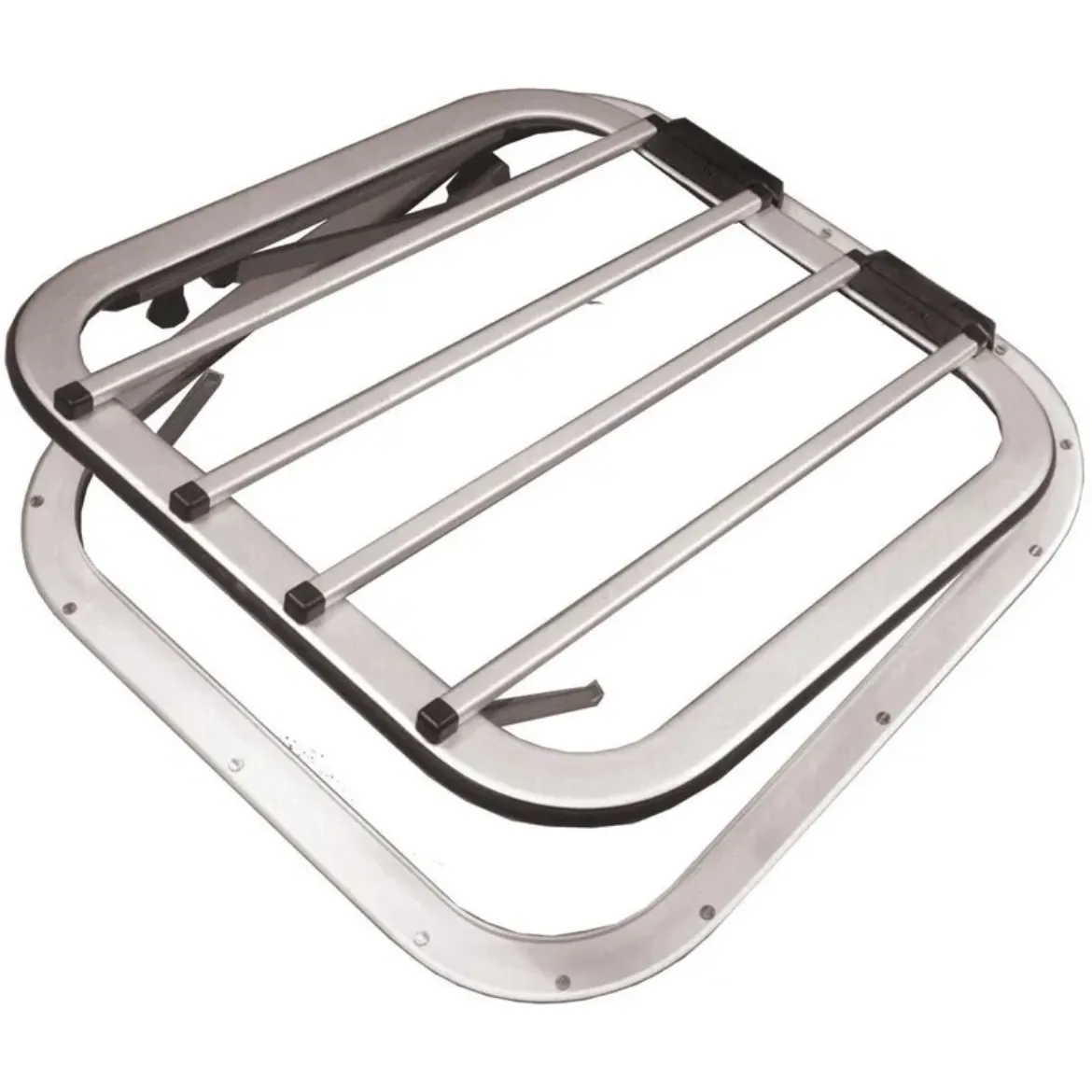

Houdini Super 50 Hatch HD-5 500 X 500mm

$809.05
Sold Out - Backorder Available

The world renowned and instantly recognisable Houdini deck hatch has been in production for over 50 years.

There are few marinas in the world where you cannot find boats fitted with Houdini hatches.  Houdini hatches are robustly constructed using quality materials and are fitted with toughened glass. When compared to acrylic glazing, used in most deck hatches, toughened glass will not scratch as easily or suffer UV degradation.

This means that the hatch will maintain its appearance and give many years of trouble free service. Houdini hatches enjoy a reputation for being functional, watertight and economically priced. The most popular sizes are Model 3, often referred to as the ‘Mini Hatch’ and Model 5, the ‘Super 50 Hatch’. With an above deck height of a mere 25mm these hatches are extremely streamlined and cause minimum obstruction on the deck.

(HD-5)

  • Hatches are CE marked for compliance with ISO12216 standard

  • Marine grade aluminium (HE9), silver satin anodised as standard

  • Aluminium alloy safety bars

  • All joints sealed against ingress of water, fish-plated and screwed

  • Seal is extruded synthetic rubber

  • Grey tinted toughened glass fitted as standard

  • Two casement handles

  • Options available

    • Clear, obscured glass or bronze, green and blue tints available

    • Multi-position adjustable ventilation stays

    • Can be supplied without safety bars

    • Frame - coloured powder coat or matt gold anodised

  • Safety bars are standard on all Houdini hatches.
    • option for no bars should be specified when ordering
  • Aperture (Cut out) size mm:  500 x 500
  • Aperture radius mm:  100
  • Overall size mm:  534 x 534
  • Clear opening size mm:  470 x 470
  • Glass thickness mm:  6
  • Ventilation stay - yes
  • Optional Adjustable stays



SKU HD-5
