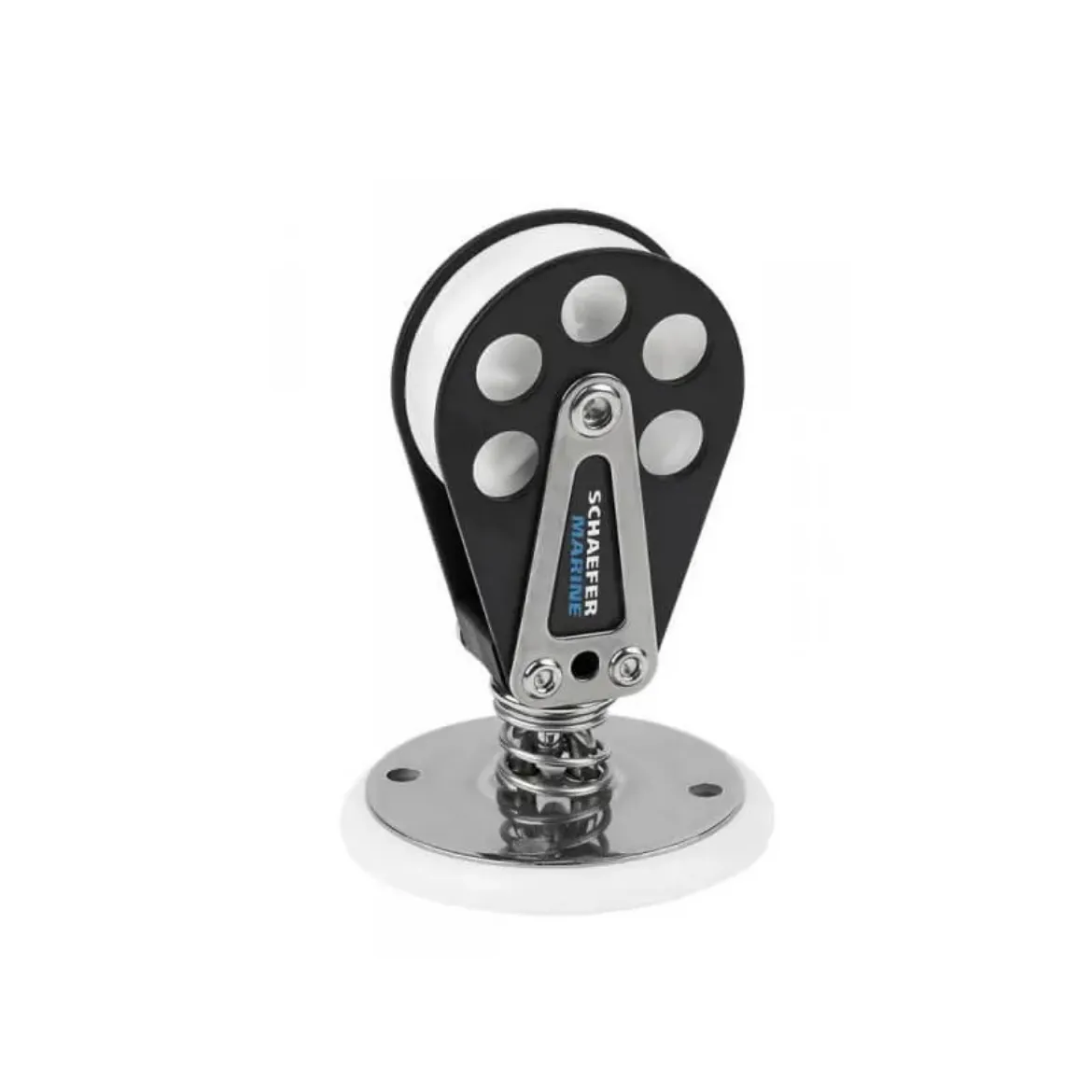

Stand-Up Swivel with Aluminum cheeks 504-62
- Sheave Dia. 2" (51 mm)
- Max Line 7/16" (11 mm)
- Dia. includes urethane base 2-7/8" (73 mm)
- Height 4-1/32" (103 mm)
- H2 2-3/32" (54 mm)
- Fastener Size (4), #10 RH (5 mm), C/C 1-12/31" (36 mm)
- SWL 1750 lbs. (790 kg)
- Weight Alum. 7.0 oz. (198 g)
- #97-48 BACKING PLATE ORDERED separately
SKU: SC504-62
$409.55
Backorder Available
Stand up swivel block with aluminum cheeks. Delrin(tm) sheave ensures smooth operation and high safe working load. Order backing plate separately #97-48
SKU: SC504-62
Clearance price only available on current stock, no backorders on clearance pricing.
Offer is only open on transactions made during the clearance period.
- Sheave Dia. 2" (51 mm)
- Max Line 7/16" (11 mm)
- Dia. includes urethane base 2-7/8" (73 mm)
- Height 4-1/32" (103 mm)
- H2 2-3/32" (54 mm)
- Fastener Size (4), #10 RH (5 mm), C/C 1-12/31" (36 mm)
- SWL 1750 lbs. (790 kg)
- Weight Alum. 7.0 oz. (198 g)
- #97-48 BACKING PLATE ORDERED separately
| SKU | SC504-62 |
| Brand | Schaefer Marine |
