Cheek, Aluminum Sheave series 5
- Sheave Dia. 2" (51 mm)
- Max Line 7/16" (11 mm)
- L 3-5/8" (92 mm)
- W 2-7/32" (57 mm)
- H 7/8" (22 mm)
- Fasteners (4) #10 RH (5 mm), C/C 3" (76 mm)
- SWL 1750 lbs. (795 kg)
- Weight 6.5 oz. (184 g),
- Max Line 7/16" (11mm)
SKU: SC504-10
$339.00
Backorder Available

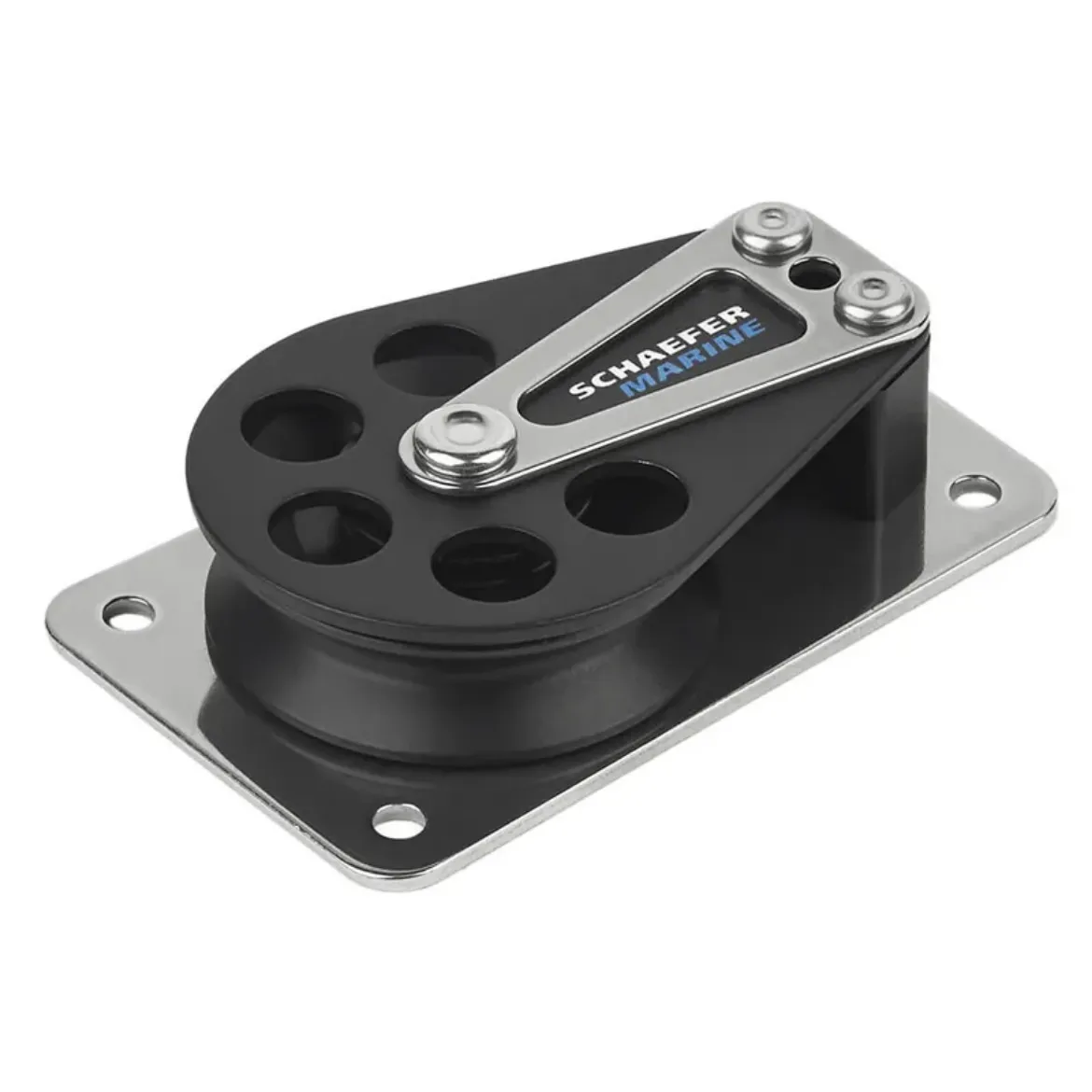

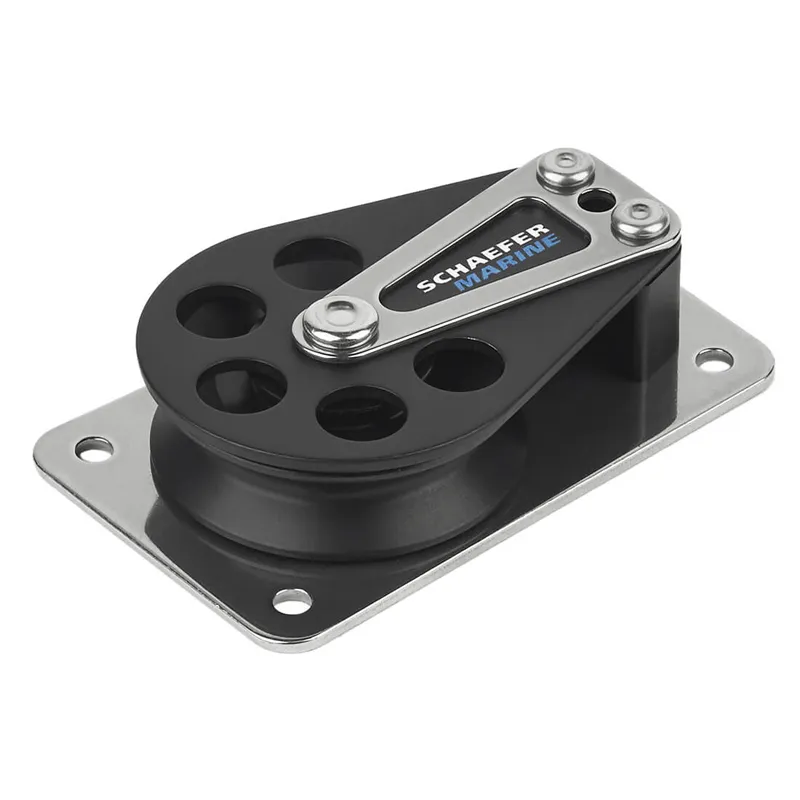

5 Series Cheek Block with anodized Aluminum cheek and aluminum sheave.
Aluminum sheave runs on nomex(tm)/Teflon(tm) bearing ensuring smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
SKU: SC504-10
- Sheave Dia. 2" (51 mm)
- Max Line 7/16" (11 mm)
- L 3-5/8" (92 mm)
- W 2-7/32" (57 mm)
- H 7/8" (22 mm)
- Fasteners (4) #10 RH (5 mm), C/C 3" (76 mm)
- SWL 1750 lbs. (795 kg)
- Weight 6.5 oz. (184 g),
- Max Line 7/16" (11mm)
| SKU | SC504-10 |
| Brand | Schaefer Marine |
