Cheek, Ball Bearing series 5
- Sheave Dia. 2" (51 mm),
- Max Line 7/16" (11 mm)
- L 3-5/8" (92 mm), W 2-7/32" (57 mm), H 7/8" (22 mm)
- Fasteners (4) #10 RH (5 mm), C/C 3" (76 mm),
- SWL 1500 lbs. (680 kg)
- Weight Alum. 5.9 oz. (167g)
- Max Line 7/16" (11mm)
SKU: SC506-11
$274.60
Backorder Available

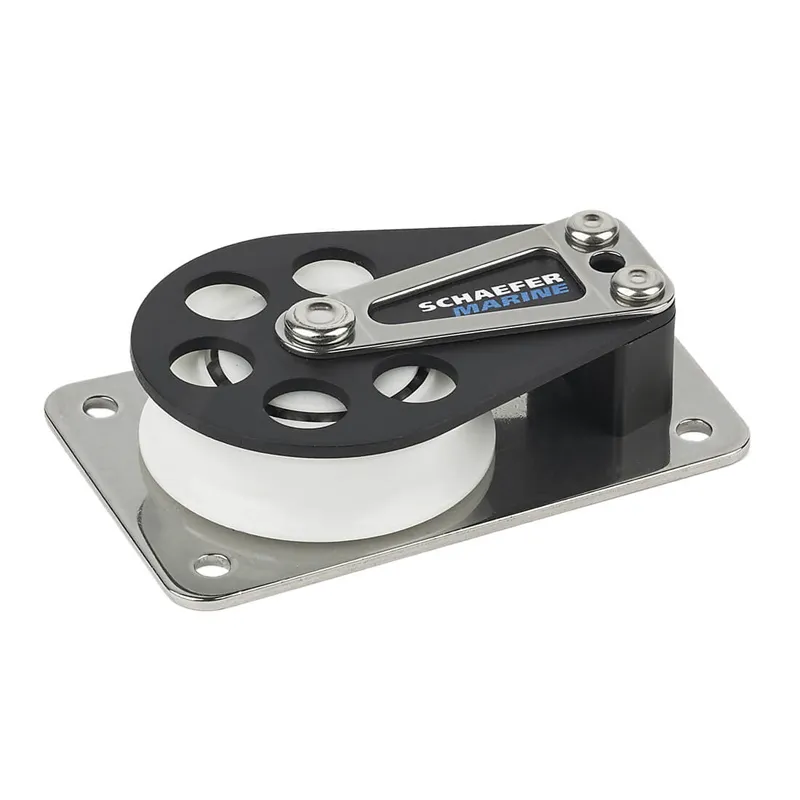

5 Series Cheek Block with Anodized Aluminum cheek and Delrin(tm) ball bearing sheave.
Delrin(tm) ball bearing sheave provides low-friction and high safe working load. Stainless steel base distributes loads to a large surface area.
SKU: SC506-11
- Sheave Dia. 2" (51 mm),
- Max Line 7/16" (11 mm)
- L 3-5/8" (92 mm), W 2-7/32" (57 mm), H 7/8" (22 mm)
- Fasteners (4) #10 RH (5 mm), C/C 3" (76 mm),
- SWL 1500 lbs. (680 kg)
- Weight Alum. 5.9 oz. (167g)
- Max Line 7/16" (11mm)
| SKU | SC506-11 |
| Brand | Schaefer Marine |
