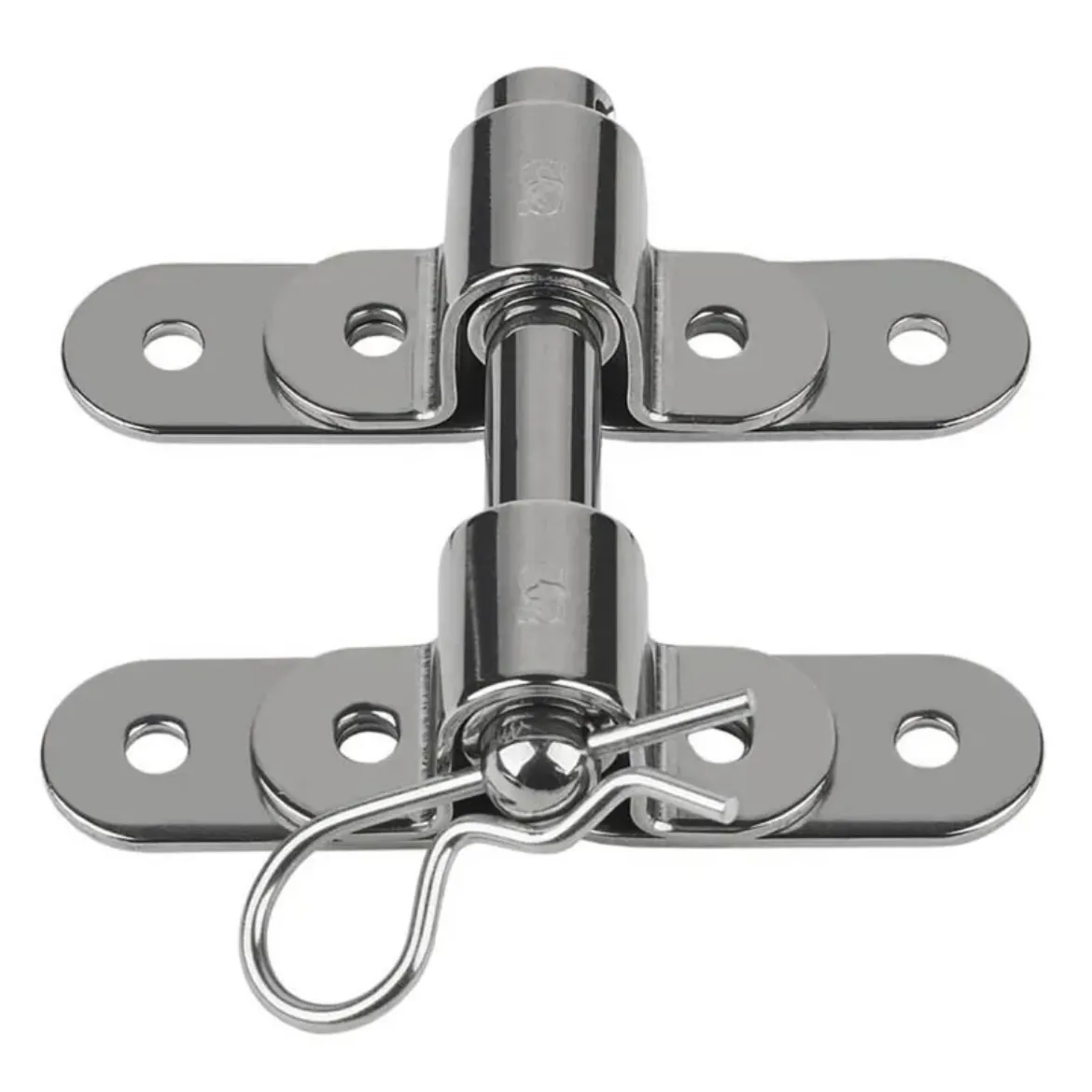

Gudgeon Strap And Pin Assembly, J/24
- Boat Size Up to 25' (7.6 m)
- Pin Dia. 1/2" (13 mm)
- Pin Length 3-7/8" (98 mm)
- Strap Thick. 1/8" (3 mm)
- Strap Lenght 4-1/4" (108 mm)
- Strap Width 1" (25 mm)
- Fastners (8), 1/4" RH (6 mm)
- Weight 8 oz. (227 g).
- Includes (2) 81-46, (1) 81-49
SKU: SC81-50
Schaefer medium-duty Pintles and Gudgeon components for boats up to 25' (7.6m)
With separate pins and welded pintle straps contained between an upper and lower gudgeon strap.
SKU: SC81-50
- Boat Size Up to 25' (7.6 m)
- Pin Dia. 1/2" (13 mm)
- Pin Length 3-7/8" (98 mm)
- Strap Thick. 1/8" (3 mm)
- Strap Lenght 4-1/4" (108 mm)
- Strap Width 1" (25 mm)
- Fastners (8), 1/4" RH (6 mm)
- Weight 8 oz. (227 g).
- Includes (2) 81-46, (1) 81-49
SKU | SC81-50 |
Brand | Schaefer Marine |
