Yacht Rod Large


  • Stroke:  11-1/2”
  • Adjustable Length:
  • Pin to Pin (min):  66-1/2"
  • Pin to Pin (Max):  80"
  • Adjustable distance:  13-1/2"
  • Pin size:  5/8"
  • Jaw width:  11/16"
  • Weight:  17 lbs
  • Max return force:  1450 lbs

SKU: FS352100

$3,367.95
In Stock

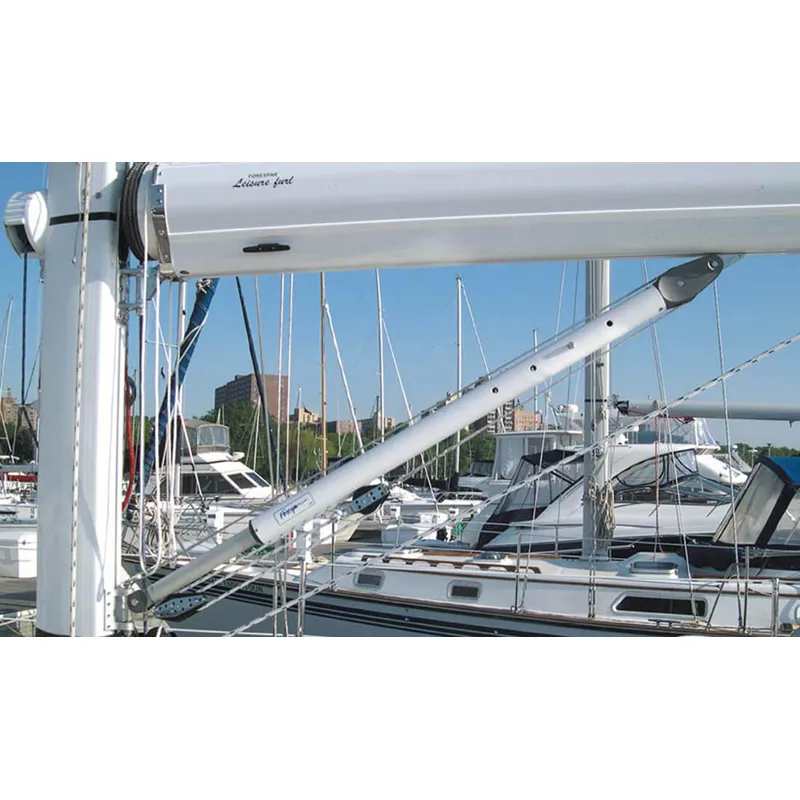

YACHT ROD™ The High Performance Spring-Loaded Mechanical Boom Vang Precision design in three sizes.  Large Yacht Rod for 41-45' boats.

Excellent vang/boom support for performance cruising and racing. White powder coated aluminum & polished stainless steel. Supplied with spectra cable ready to add your tackle system. Your 4:1 equals 8:1 when installed on Yacht Rod™. Can be led to small winch for additional power. Spring return holds boom. Brackets for mast and boom sold separately.

Caution: Oversheeting or leaning heavily on aft end of boom can bend the boom or the Yacht Rod™. The main halyard shackle should be snapped to the outboard boom end, in port, to prevent damage to the Yacht Rod™.

Note of Caution: Furling booms weigh as much as 3 times as much as standard booms. Standard vang spring will not support their weight. In rough weather and sea conditions, it is prudent to set a topping lift in case of a gooseneck failure or other boom equipment failure.

Forespar® makes three sizes of spring loaded boom vangs for boats starting around 30 feet and up to about 55 feet.

  • Eliminates need for boom topping lift
  • Supports boom in light air, when reefing and lowering mainsail
  • No gas spring to lose its charge
  • Faster than hydraulics – No messy hydraulics to leak
  • More efficient than conventional tackles
  • Tubing is white coated anodized 6061-T6 aluminum and electropolished 316 stainless steel
  • Precision machined 6061-T6 aluminum clevis ends, sheaves and Nylatron® bearings
  • Precipitation hardened stainless steel spring with fast-pin adjustment — rated for over 1 million compressions.

For more information on the Forespar Yacht Rods visit our Catalogues and Tech Sheets section.

SKU: FS352100

• Eliminates the need for the topping lift to be set in general sailing conditions*
• Supports boom in light air and when reefing and lowering the mainsail
• Faster than hydraulics – No messy hydraulics to leak
• More efficient than conventional tackles
• Tubing is white coated anodized 6061-T6 aluminium and electro polished 316 stainless steel
• Precision machined 6061-T6 aluminium clevis ends, sheaves and Nylatron® bearings
• Precipitation hardened stainless steel spring with fast-pin adjustment – rated for over 1 million compressions
• No gas spring to lose its charge

  • Stroke:  11-1/2”
  • Adjustable Length:
  • Pin to Pin (min):  66-1/2"
  • Pin to Pin (Max):  80"
  • Adjustable distance:  13-1/2"
  • Pin size:  5/8"
  • Jaw width:  11/16"
  • Weight:  17 lbs
  • Max return force:  1450 lbs
SKU FS352100
Brand Forespar
