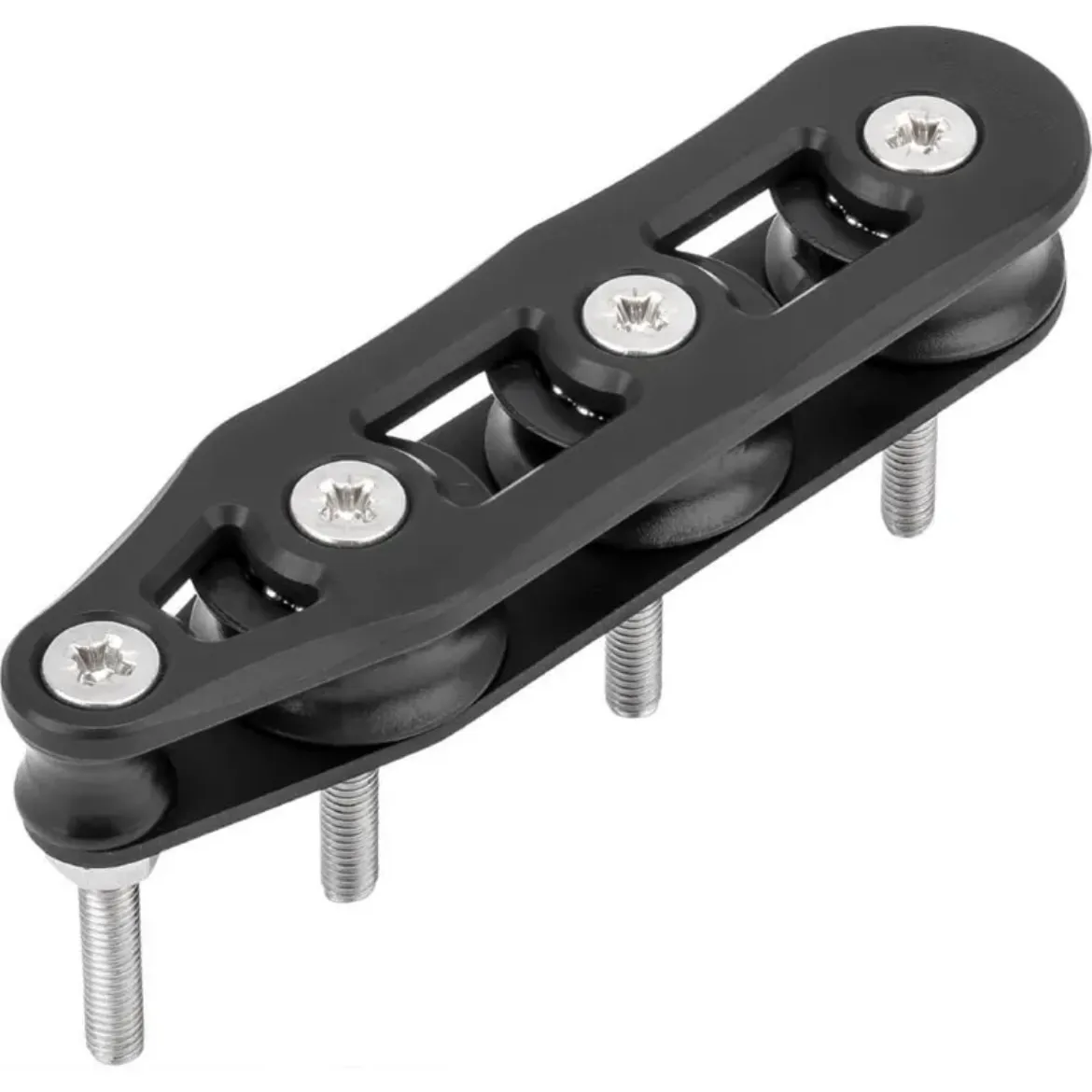

20mm triple DB deck organiser

Deck organiser designed for leading control lines and halyards along a deck or coach roof.

Dynamic bearing sheave with marine-grade cheeks.

Includes 4 bolts, nuts and washers.

DB stands for Dynamic Bearing, which is the Allen patented bearing system. The dynamic bearing system features twin rows of stainless-steel ball bearings running on a stainless-steel axle. This ball-bearing technology offers high rolling speeds with minimal friction, resulting in fast and smooth running for rope around the sheave.

Dynamic bearing technology lends itself to use in applications which require fast sheave movement, this makes the DB deck organiser range perfect for halyard or control line systems on Sportsboats up to 28ft. The DB deck organiser range is also a great choice for dinghies where control lines need to be run along the deck or be diverted from the mast base.

We have rated the DB deck organiser range based on a 30-degree turning angle around the sheave. A 30-degree turn on a sheave will have a load factor of 50% of the line load.
