40mm Flip Flop Block with cam cleat


Fixing hole centres: 60mm

Fixing hole diameter: 5mm

Max line diameter: 10mm

Max working load: 150kg

Sheave diameter: 40mm

Weight: 255g

SKU: A2143-76

$182.90
In Stock

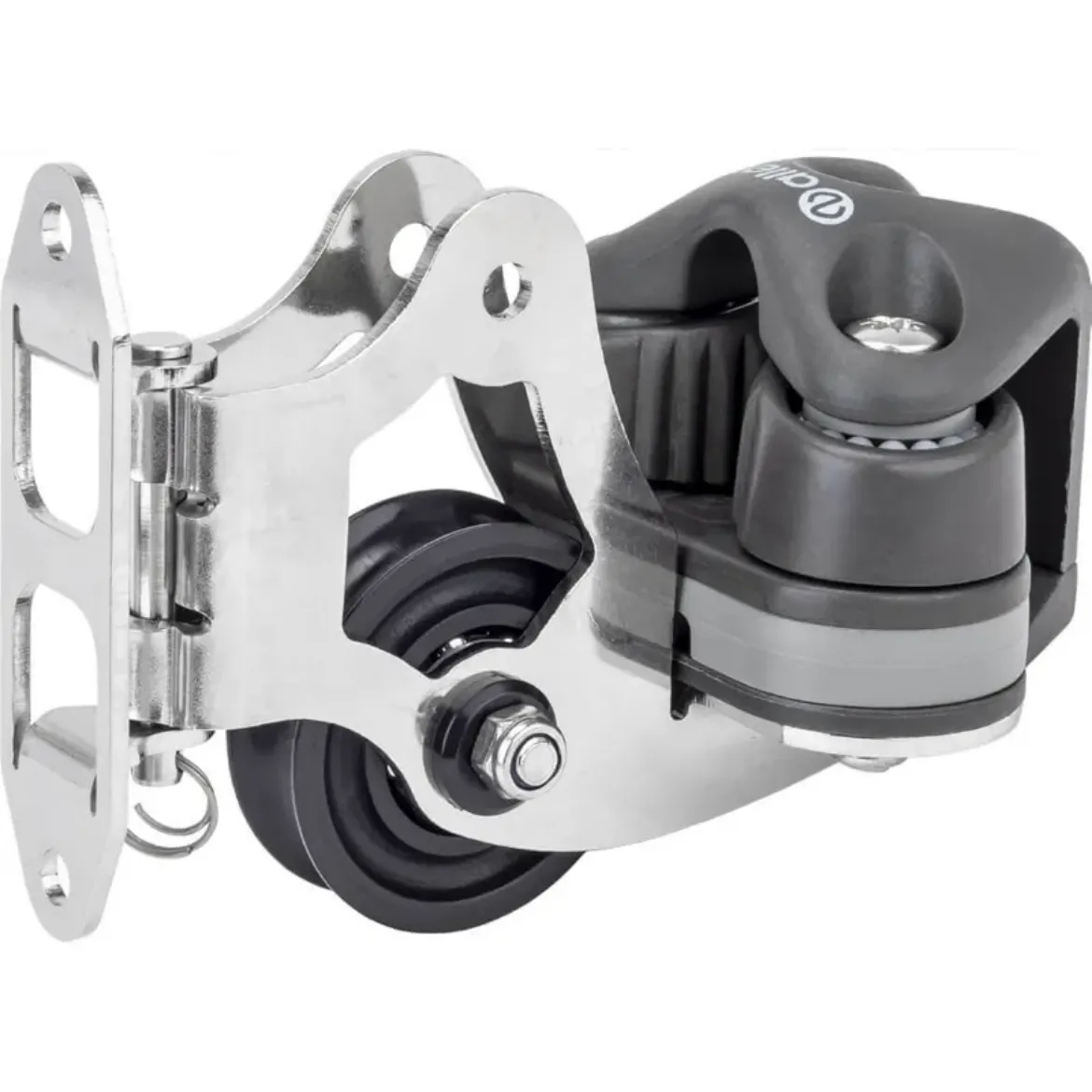

40mm flip flop block with ball bearing sheave and aluminium cam cleat.

Flip flop blocks are designed to pivot around a central fixing point, this keeps the rope close to the deck, mast or boom whilst still allowing the block to articulate to the correct lead angle, ensuring friction stays as low as possible whilst still guiding the rope to where it needs to go.

Features two locations to install the dynamic sheave. Simply undo and remove the bolt holding the sheave in place and relocate it in either fixing hole on the main body. These two options allow the block to be installed and used in a wider range of applications.

The sheave features our dynamic ball bearing technology. Which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.

A clevis pin holds the main flip flop body to the backing plate. This clevis pin is the central flip flop /pivot point for the block. Removing the clevis pin will part the body and backing plate, allowing for easy access to the backing plate as well as giving the option to install the body either way up.

Also featured is the A..76 medium ball bearing cam cleat – The jaw profile is optimised for rope entry and exit reducing wear on the rope. Ball bearings and double coil springs give a super smooth cam action, allowing for a consistent feel every time the rope is cleated.

Ideal for use on many different classes of boats and in a wide range of applications:

  • Upgrade to J70 spinnaker halyard cleat.
  • F18, Nacra 17 – spinnaker halyard cleat
  • Small keelboat pole launcher system.
  • Dinghy and small keelboat spinnaker or jib sheet turning point.
  • Dinghy jib sheet cleat.
  • Keelboat outhaul cleat.
  • Keelboat backstay system.

SKU: A2143-76

Fixing hole centres: 60mm

Fixing hole diameter: 5mm

Max line diameter: 10mm

Max working load: 150kg

Sheave diameter: 40mm

Weight: 255g

SKU A2143-76
Brand Allen Brothers
