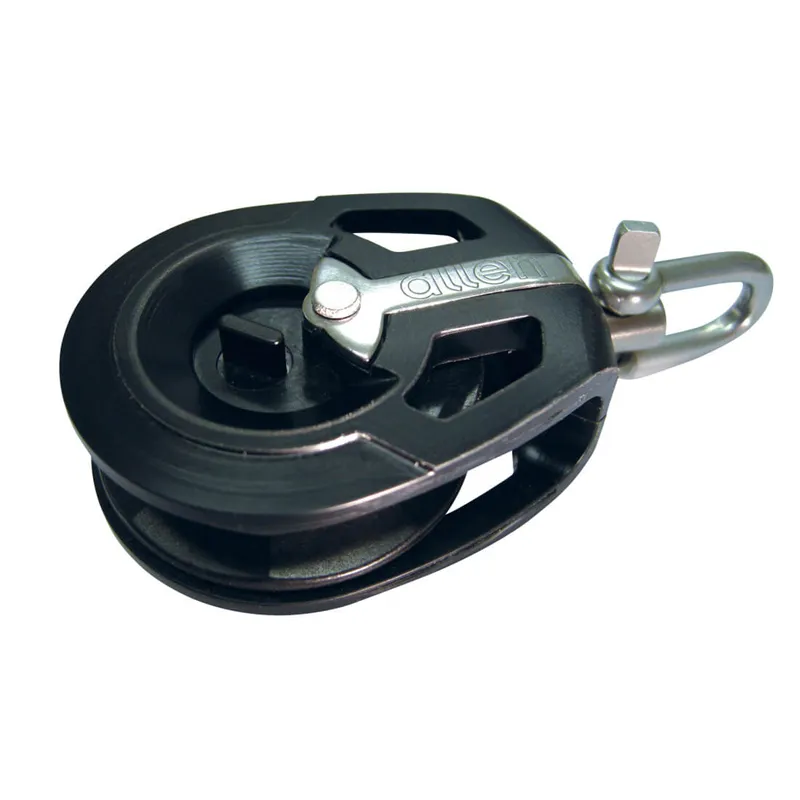

Compact switchable ratchet for use on the sheeting system of a high performance dinghy such as the 29er/49er or RS400.
It can also be used for traditional spinnaker trimming on dinghies such as the Merlin Rocket or Fireball.
The design of the sheave is proven for low rope wear whilst giving sufficient grip when required and the switching mechanism can be turned on or off under load.
Sheave diameter: 40mm
Max Line Diameter: 6mm
Shackle Pin: 4mm
Breaking Load: 475kg
Max Working Load: 120kg
