70mm composite fibre bearing, resin sheave


  • Sheave (D):  70mm
  • Side bearing:  Delrin balls
  • Radial bearing:  composite fibre
  • Weight:  66gr
  • Max line:  12mm
  • SWL:  1300kg
  • Sheave material:  plastic
  • D2:  15mm
  • D3:  12mm
  • Thickness (T):  16mm

SKU: AT-07016F

$100.10
Backorder Available

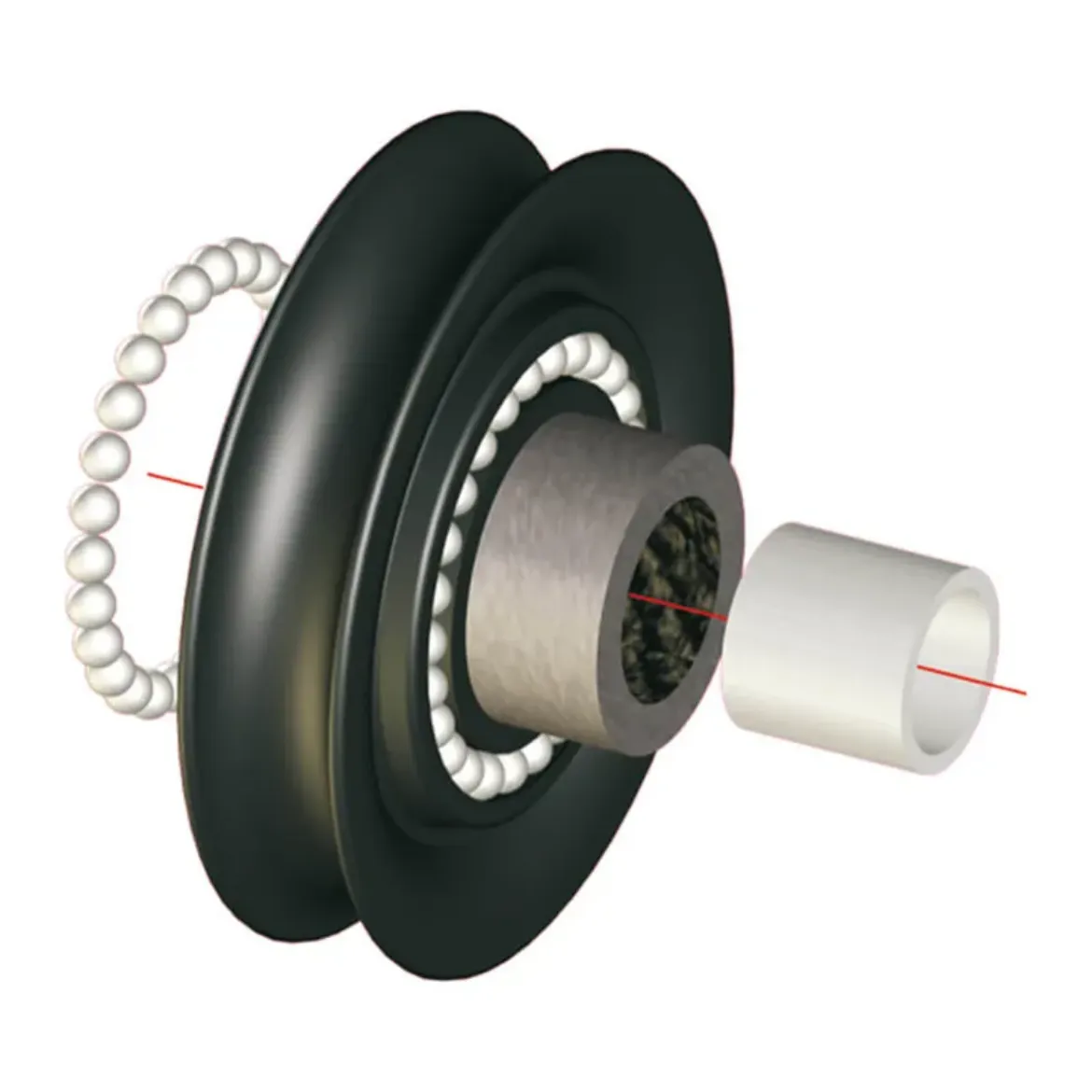

The resin (aluminium on larger models) sheave runs on the main Composite Fibre bearing and on a ground Stainless Steel Hub:  low friction high loads - no lubricant required.

The self-captive side ball bearing reduces the friction and makes disassembling, cleaning and maintenance very easy.

Sheaves are supplied with the stainless steel hub, they are available separately.

SKU: AT-07016F

  • Sheave (D):  70mm
  • Side bearing:  Delrin balls
  • Radial bearing:  composite fibre
  • Weight:  66gr
  • Max line:  12mm
  • SWL:  1300kg
  • Sheave material:  plastic
  • D2:  15mm
  • D3:  12mm
  • Thickness (T):  16mm
SKU AT-07016F
Brand Antal
