Barton Marine Size 0 (20mm) Stand-Up Blocks are moulded from marine grade glass fibre nylon composite reinforced with 316 stainless steel straps and pins providing superior strength in a very low weight design.
Offered in both plain and ball bearing options, it can be supplied as single or double sheave stand-up design. This block is ideal for dinghy and small craft enthusiasts as well as commercial applications in harsh environments.
Characteristics
These robust blocks have an overall height of 30mm. The bearing face of the sheave is engineered only 10mm from the bulkhead which means ropes and lines remain close to the surface. Plain bearing sheaves run on a brass bearing which is strong and reliable, and ideal for long term static loads. Ball bearing versions use Delrin balls which reduce friction during operation.
Technical Details
Max. rope 6mm (1/4”)
Sheave diameter single 20mm (25/32”)
Fastener size 5mm (3/16”)
PLAIN BEARING
SWL 275kg (606lbs)
Break load 550kg (1210lbs)
BALL BEARING
Max rolling load 130kg (286lbs)
Break load 550kg (1210lbs)
Cheeks - Glass Reinforced Nylon
Sheaves - Acetal
Straps & Fittings - 316 Stainless Steel
Plain Bearing - Brass
Ball Bearings - Delrin
| Part Number | Bearing Type | Description |

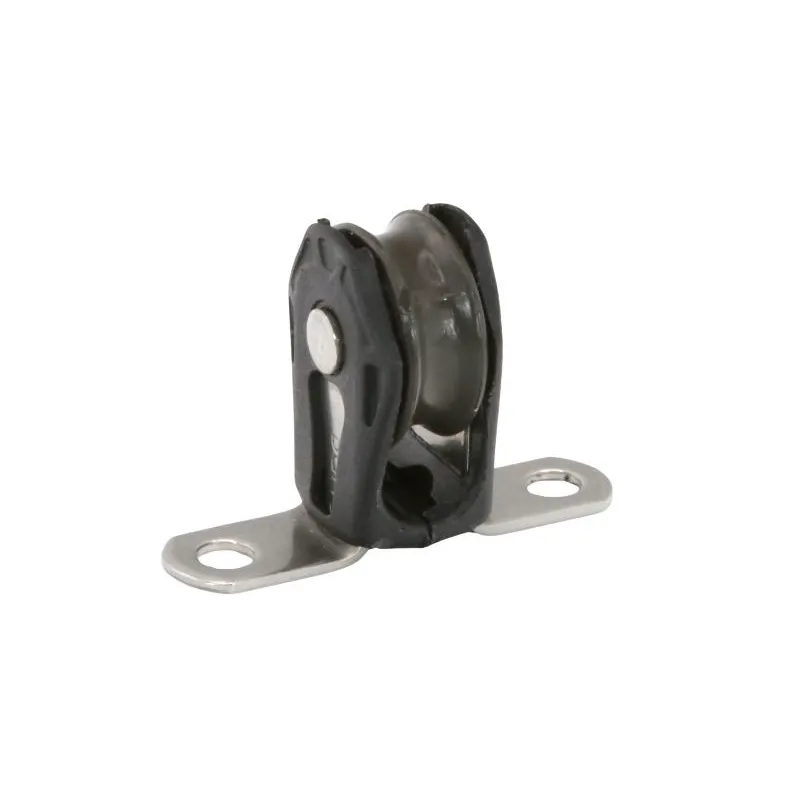

| N00150 | Plain Bearing | Single 20mm Stand Up block |
| N10150 | Ball Bearing | Single 20mm Stand Up block |

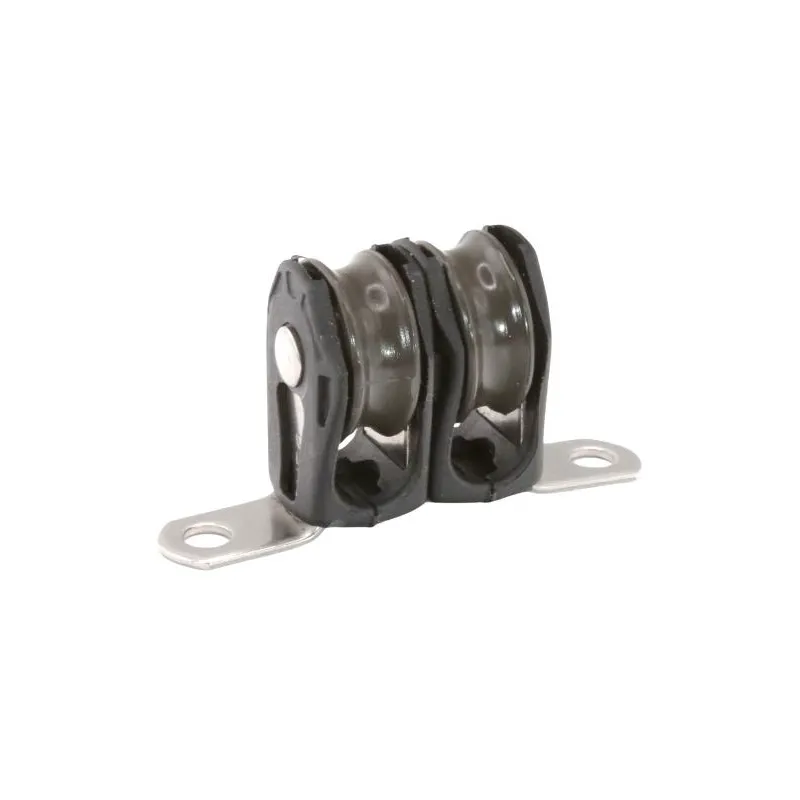

| N00250 | Plain Bearing | Double 20mm Stand Up block |
| N10250 | Ball Bearing | Double 20mm Stand Up block |
