Series 5 Flat base Cheek Block
- Sheave Dia. 2" (51 mm)
- Max Line 7/16" (11 mm)
- Length 3-5/8" (92 mm)
- Width 2-7/32" (57 mm)
- Height 7/8" (22 mm)
- Fasteners (4) #10 - RH (5 mm), C/C 3" (76 mm)\
- SWL 1750 lbs. (795 kg),
- Weight 6.9 oz. (196 g)
SKU: SC505-11
$221.35
Backorder Available

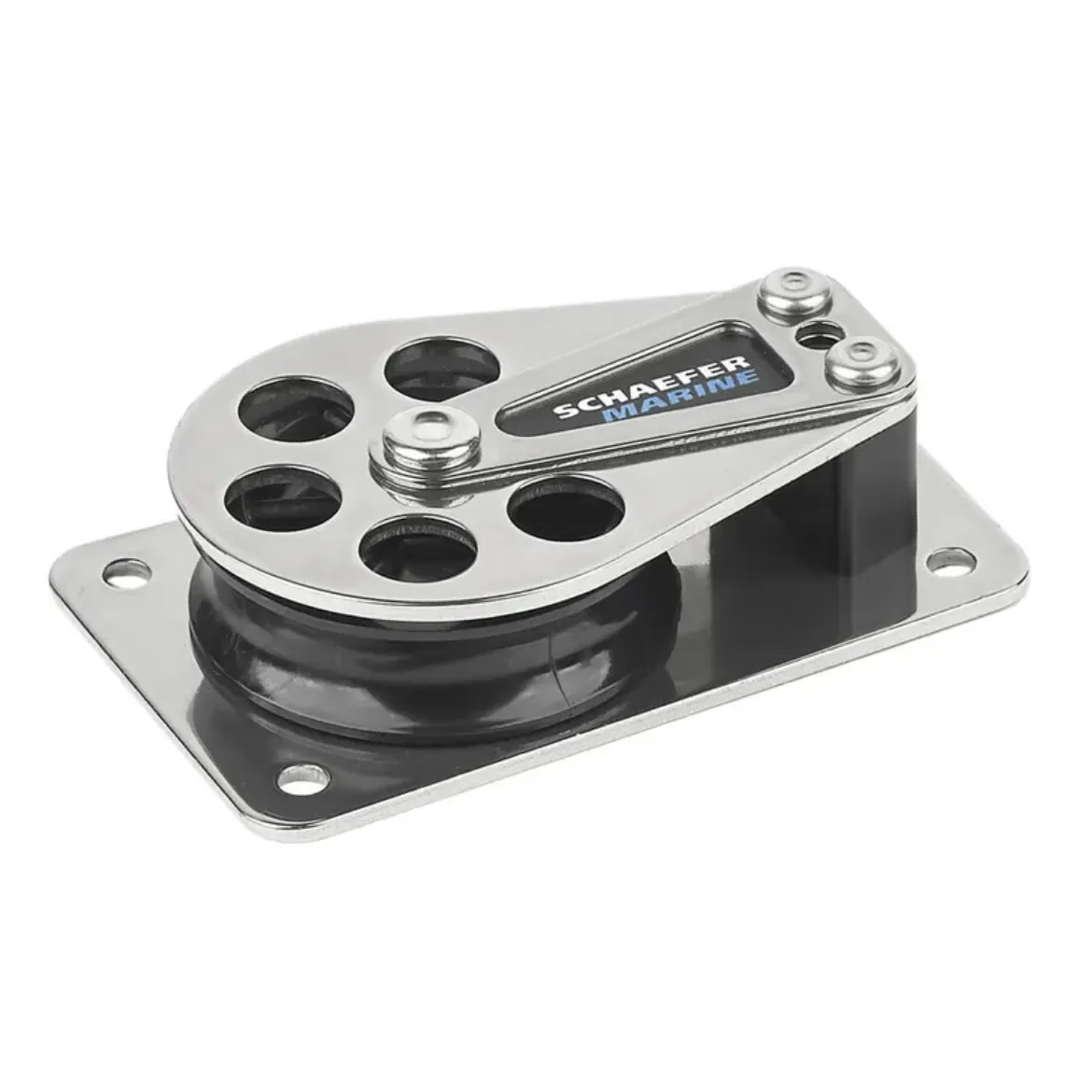

Series 5 Cheek Block with Stainless Steel cheek.
Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
SKU: SC505-11
- Sheave Dia. 2" (51 mm)
- Max Line 7/16" (11 mm)
- Length 3-5/8" (92 mm)
- Width 2-7/32" (57 mm)
- Height 7/8" (22 mm)
- Fasteners (4) #10 - RH (5 mm), C/C 3" (76 mm)\
- SWL 1750 lbs. (795 kg),
- Weight 6.9 oz. (196 g)
| SKU | SC505-11 |
| Brand | Schaefer Marine |
