GFM Manual Foresail Furler C0T drum kit
Max Forestay Ø: 4-7mm
Rod: -10
Clevis pin Ø: 8-10-12mm
Foil type: BMG30R
Foil length: 15m
Weight: 0.66 kg/m
Furling line not included
Max sail area (m² 150%): 30
Max stay length suggested: 10.5m
Weight: 16kg
SKU: BA-901102922
Manual foresail furler available in different sizes C0, C0T, C1, C2, C3, C4, C5 and C6 (for either 1×19 Wire stays from Ø 4 to Ø 26 mm, or Rod from #10 to #91).
The kit is supplied complete with aluminum furling foils and halyard swivel. It is equipped with link plates which may be cut to measure in order to customize tack height.
The furling drum rotates on a double race of ball bearings, which do not require neither lubrication nor maintenance. The furling drum is hollow inside, thus allowing for a turnbuckle to be housed inside and for the stay to pass through.
The drum is entirely made in anodized aluminum alloy and s.s. parts are insulated by means of a nylon film. It has been conceived in order to be easily fitted by means of simple tools.
C6 drum is entirely manufactured in polished s.s.

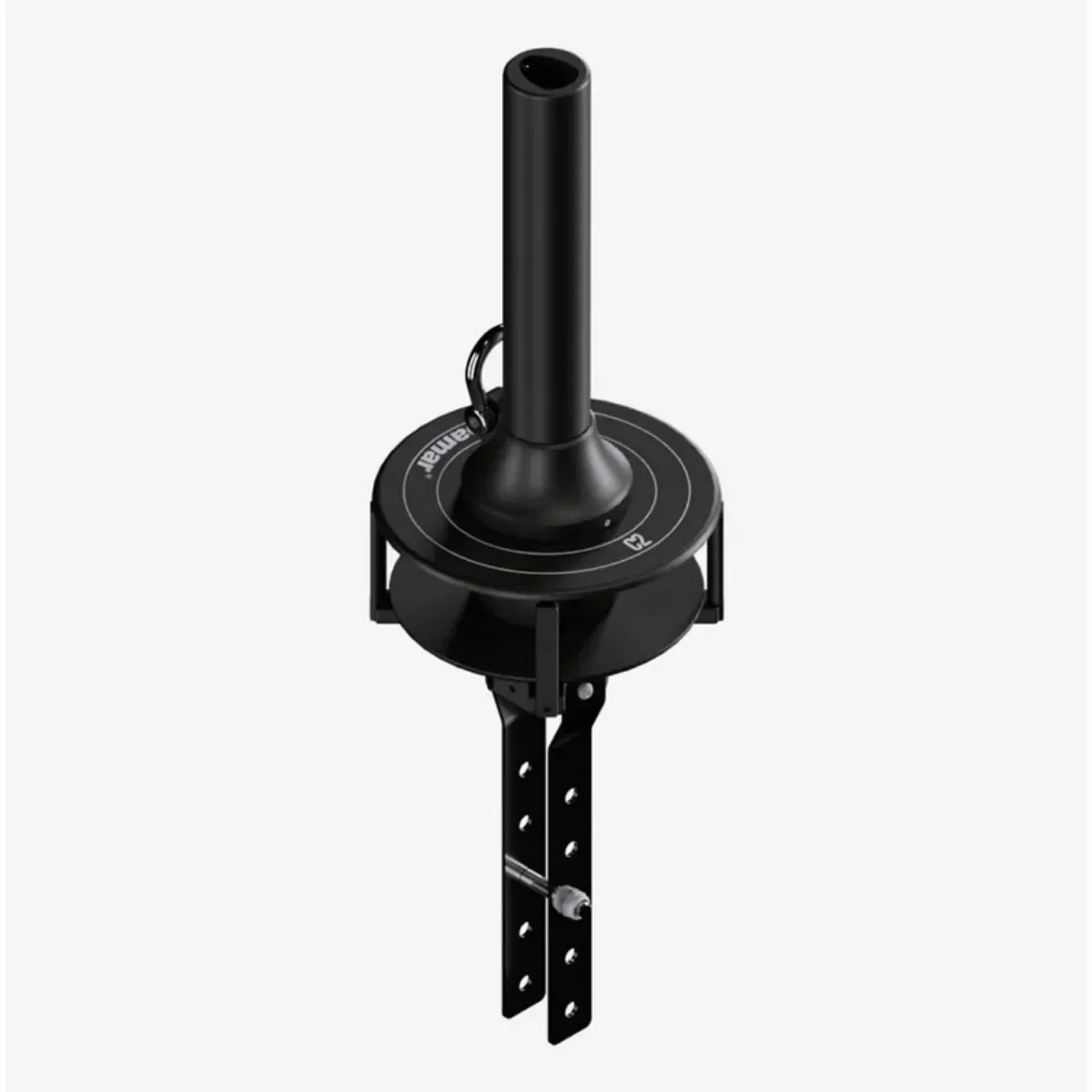

Image shows C2 Model
SKU: BA-901102922
Max Forestay Ø: 4-7mm
Rod: -10
Clevis pin Ø: 8-10-12mm
Foil type: BMG30R
Foil length: 15m
Weight: 0.66 kg/m
Furling line not included
Max sail area (m² 150%): 30
Max stay length suggested: 10.5m
Weight: 16kg
| SKU | BA-901102922 |
| Brand | Bamar |
